Ford 2110 LCG Transmission


Ford 2110 LCG tractor photo
1965 - 1975
Industrial tractor
Series map:
2110
4110
37.5hp
62.3hp
Transmission options
6-speed
8-speed
10-speed power shift
4-speed gear
Transmission
Gears6 forward and 2 reverse
Clutch279.4mm dry disc
Oil capacity14.4 qts
13.6 L
Speeds
With 8.3-24 rear tires.

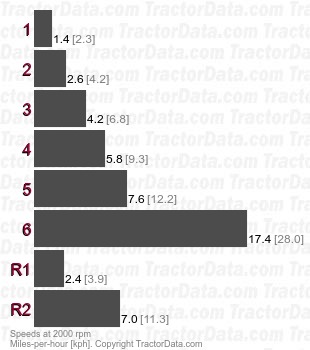

2110 LCG   speeds
Transmission
Gears8 forward and 2 reverse
Clutch279.4mm dry disc
Oil capacity14.4 qts
13.6 L
Speeds
With 8.3-24 rear tires.
2110 LCG   speeds
Transmission
Typepower shift
Gears10 forward and 2 reverse
Speeds
With 8.3-24 rear tires.

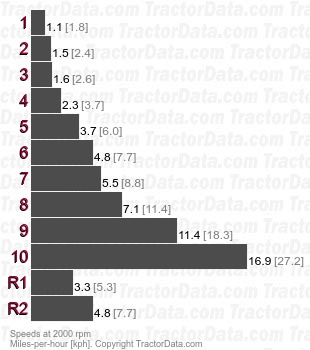

2110 LCG  power shift speeds
Transmission
Typegear
Gears4 forward and 1 reverse
Speeds

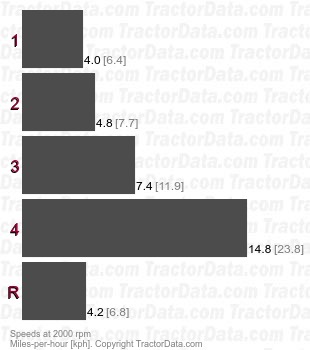

2110 LCG  gear speeds
