Massey Ferguson 2135 Engine


Massey Ferguson 2135 tractor photo
1964 - 1968
Industrial tractor
Engine options
Continental 2.2L 4-cyl gasoline
Perkins 2.5L 3-cyl diesel
Engine Detail

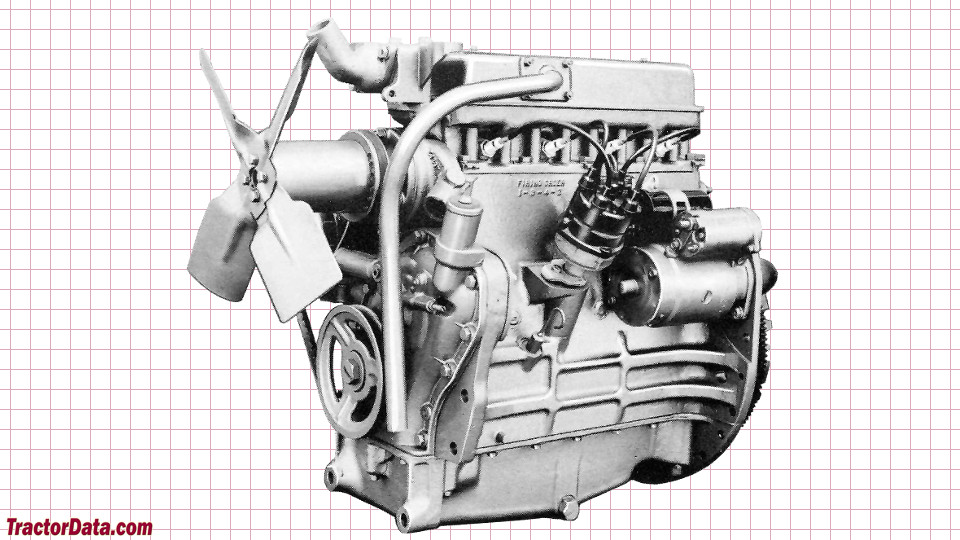

Continental Z134
gasoline
4-cylinder
liquid-cooled
Displacement134 ci
2.2 L
Bore/Stroke3.3125x3.875 inches
84 x 98 mm
Power42 hp
31.3 kW
Air cleanerdry
Rated RPM2000
Torque115 lb-ft
155.9 Nm
Torque RPM1200
Starter volts12
Oil capacity5 qts
4.7 L
Coolant capacity10 qts
9.5 L
Massey Ferguson 2135 Engine
Massey Ferguson 2135 engine image
Engine Detail

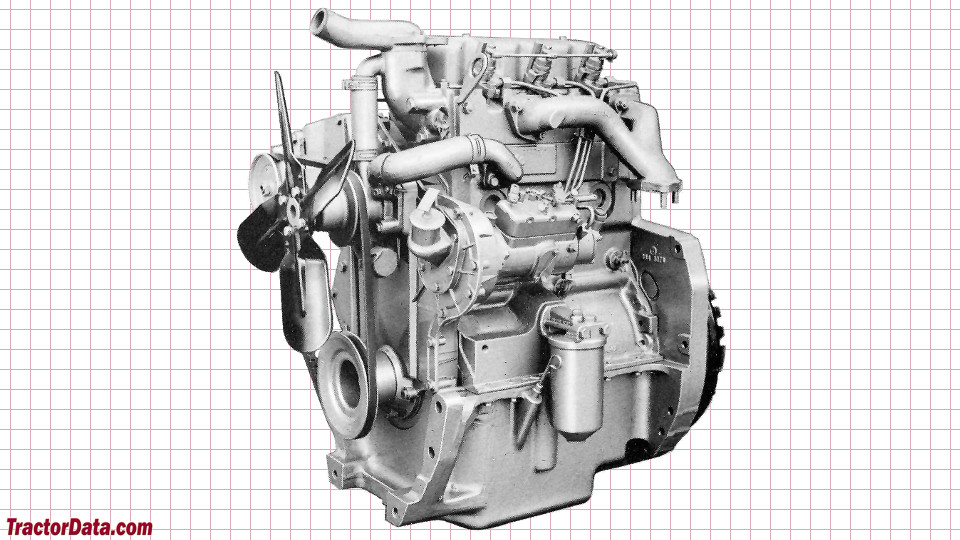

Perkins AD3.152
diesel
3-cylinder
liquid-cooled
Displacement152.7 ci
2.5 L
Bore/Stroke3.60x5.00 inches
91 x 127 mm
Power45.5 hp
33.9 kW
Rated RPM2000
Torque119 lb-ft
161.4 Nm
Torque RPM1200
Oil capacity6 qts
5.7 L
Coolant capacity10 qts
9.5 L
Massey Ferguson 2135 Engine
Massey Ferguson 2135 engine image
