International Harvester 2405B
|
|
| Production | |
| Manufacturer | International Harvester |
| Industrial tractor | |
| The Interntional 2405B was a variant of the 2400B equipped with a utility loader. | |
| International Harvester 2405B Engines | |
| International Harvester 2.9L 3-cyl diesel | |
| International Harvester 2.6L 4-cyl gasoline | |
| International Havester 2.9L 4-cyl gasoline | |
 Engine details ... |
| International Harvester 2405B Transmissions | |
| 8-speed synchromesh | |
| 8-speed hydraulic reverser | |
| hydrostatic | |
 Transmission details ... |
| International Harvester 2405B Power | |
| Engine (gross) | 54 hp 40.3 kW |
| Engine (net) | 46 hp 34.3 kW |
| Mechanical | |
| Two-wheel drive | |
| Steering | hydrostatic power |
| Hydraulic disc brakes | |
| Four-post ROPS. | |
| Photos | |
| No photos of the International Harvester 2405B are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer. | |
| Hydraulics | |
| Pressure | 2400 psi (pump) 165.5 bar |
| 2000 psi (loader/hitch) 137.9 bar | |
| Total flow | 15 gpm (gear) 56.8 lpm |
| 17 gpm (shuttle/hydro) 64.3 lpm | |
| Steering flow | 2.5 gpm 9.5 lpm |
| Steering press. | 2400 psi 165.5 bar |
| Tractor hitch | |
| Rear Type | I |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 540 |
| Dimensions & Tires | |
| Wheelbase | 82.1 inches 208 cm |
| Weight | 5630 to 5910 pounds |
| Front tire | 7.50-16 |
| Rear tire | 14.9-24 |
 Full dimensions and tires ... | |
| International Harvester 2405B attachments | |
| front-end loader | |
 Attachment details ... |

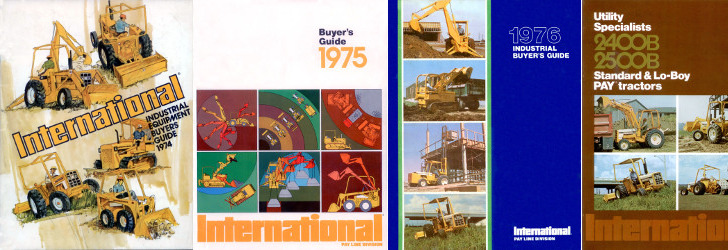

| References | |
 | |
| Buyer's Guide 1974 published by International Harvester | |
| Buyer's Guide 1975 published by International Harvester | |
| Buyer's Guide 1976 published by International Harvester | |
| 2400B & 2500B Standard & Lo-Boy PAY tractors published in 1974, by International Harvester |
