| | 1984 - 1987 |
| Industrial tractor |
|
Series map:
340B
540B
48.0hp
60.0hp
| Transmission options |
| 8-speed |
| 6-speed |
| 4-speed |
| Transmission |
| Transmission | Manual-shift
|
| Gears | 8 forward and 2 reverse
|
| Oil capacity | 13 qts
12.3 L
|
| Four speeds, plus reverse, with two ranges. |
| Speeds |
| With 16.9x24 rear tires. |
|
| Transmission |
| Transmission | Manual-reversing
|
| Gears | 6 forward and 4 reverse
|
| Oil capacity | 13 qts
12.3 L
|
| Three forward and two reverse speeds with high and low range. |
| Speeds |
| With 16.9x24 rear tires. |
|
| Transmission |
| Transmission | Torque Converter
|
| Gears | 4 forward and reverse
|
| Oil capacity | 19 qts
18.0 L
|
| Four speeds in each direction with torque converter. The torque converter has a 2.78-to-1 torque multiplication ratio and a stall speed of 2050 rpm. Power-take-off (PTO) was not available on the 340B with the torque-converter transmission. |

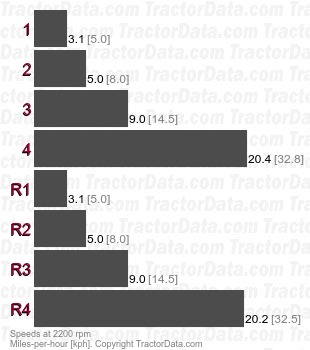

| Speeds |
| With 16.9x24 rear tires. |
|
