J.I. Case 580D Construction King Transmission


J.I. Case 580D Construction King tractor photo
1980 - 1983
Industrial tractor
Series map:
580D
60.0hp
Transmission
Gears4 forward and reverse
Transaxpe Oil capacity20 qts
18.9 L
Shuttle Oil capacity8 qts
7.6 L
Four speed sliding spur gear transmission with torque converter and power shuttle. Synchronized up-shifts from 2 to 3, and from 3 to 4. Synchronized down-shift from 4 to 3.

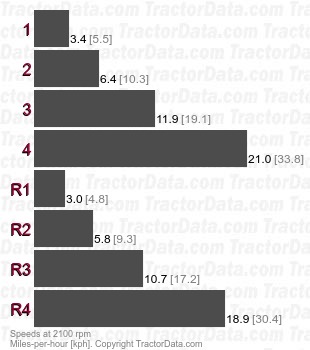

Speeds
With 17.5Lx24 rear tires.
580D Construction King   speeds
