J.I. Case 530 CK Construction King Transmission


J.I. Case 530 CK Construction King tractor photo
1960 - 1967
Industrial tractor
Series map:
530 CK
48.0hp
Transmission options
8-speed mechanical shuttle
12-speed
4-speed gear
Transmission
TransmissionDual Range Shuttle
Typemechanical shuttle
Gears8 forward and reverse
Oil capacity15 qts
14.2 L

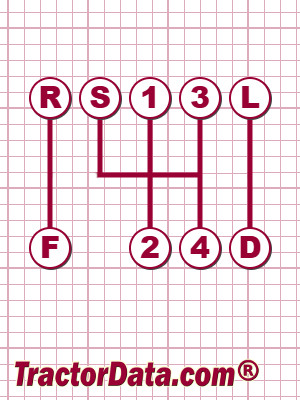

Four speeds plus reverse with two ranges (low/direct) and a shuttle lever. Torque converter was optional. Torque converter can be locked out by engaging direct-drive mode To engage direct-drive the lever is pushed down. The torque converter will be automatically re-engaged when the clutch is pressed, or can be re-engaged by moving the direct-drive lever up.
Speeds
With 14.9x24 rear tires. 2100 RPM speeds given in direct-drive mode.
530 CK Construction King Dual Range Shuttle mechanical shuttle speeds
Transmission
TransmissionCase Tripl-Range
Gears12 forward and 3 reverse
Oil capacity15 qts
14.2 L
Oil type
32oF [0oC] : SAE-90
32oF [0oC] : SAE-80
Four speeds, plus reverse, in three ranges (low/direct/high).
Speeds
With 14.9x24 rear tires.
530 CK Construction King Tripl-Range  speeds
Transmission
Typegear
Gears4 forward and 1 reverse
Oil capacity15 qts
14.2 L
Oil type
32oF [0oC] : SAE-90
32oF [0oC] : SAE-80

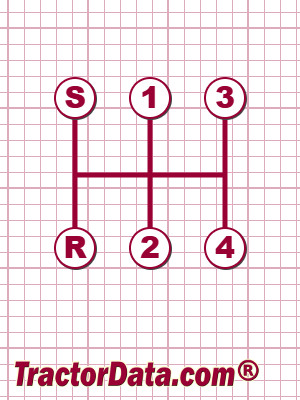

Four speeds plus reverse. Torque converter was optional and could be locked out by engaging direct-drive mode.

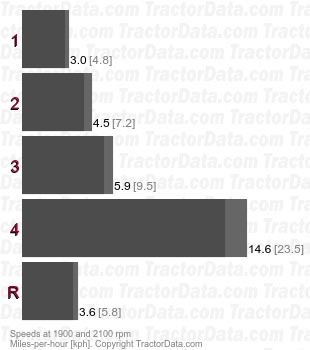

Speeds
With 14.9x24 rear tires. 2100 RPM speeds given in direct-drive mode. Optional high-speed fourth gear (18.8 mph at 1900 rpm, 20.8 at 2100 rpm).
530 CK Construction King  gear speeds
