J.I. Case 530 CK Construction King Engine


J.I. Case 530 CK Construction King tractor photo
1960 - 1967
Industrial tractor
Series map:
530 CK
48.0hp
Engine options
J.I. Case 3.1L 4-cyl diesel
J.I. Case 2.6L 4-cyl gasoline
Engine Detail
J.I. Case G188
diesel
4-cylinder
liquid-cooled
Displacement188 ci
3.1 L
Bore/Stroke3.8125x4.125 inches
97 x 105 mm
Power48 hp (1900rpm)
35.8 kW
 52 hp (2100rpm)
38.8 kW
Air cleaneroil bath
Pre-heatingcoolant heater (optional)
Compression17.5:1
Rated RPM1900
 2100 (torque converter)
Torque139 lb-ft
188.5 Nm
Torque RPM1350
Firing order1-3-4-2
Starter volts12
Coolant capacity16.5 qts
15.6 L
Coolant change1000 h (yearly)
Intake valve clearance0.014 inches (hot)
0.356 mm
Exhaust valve clearance0.014 inches (hot)
0.356 mm
Engine Oil

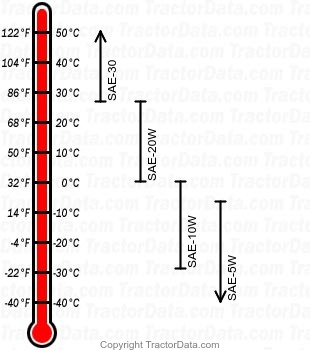

530 CK Construction King diesel engine oil chart
Oil capacity5 qts
4.7 L
Oil change120 h (oil)
 240 h (filter)
Engine Detail
J.I. Case G159
gasoline
4-cylinder
liquid-cooled
Displacement159 ci
2.6 L
Bore/Stroke3.50x4.125 inches
89 x 105 mm
Power47.6 hp (1900rpm)
35.5 kW
 52 hp (2100rpm)
38.8 kW
Air cleaneroil bath
Compression7.42:1
Rated RPM1900
 2100 (torque converter)
Firing order1-3-4-2
Starter volts12
Coolant capacity14 qts
13.2 L
Coolant change1000 h (yearly)
SparkplugPrestolite 18 8
Sparkplug gap0.025 inches
0.635 mm
Point gap0.020 inches
0.508 mm
Intake valve clearance0.014 inches (hot)
0.356 mm
Exhaust valve clearance0.014 inches (hot)
0.356 mm
Engine Oil
530 CK Construction King gasoline engine oil chart
Oil capacity5 qts
4.7 L
Oil change120 h (oil)
 240 h (filter)
