J.I. Case 430CK Construction King Transmission


J.I. Case 430CK Construction King tractor photo
1960 - 1966
Industrial tractor
Series map:
430CK
38.5hp
Transmission options
12-speed
4-speed mechanical shuttle
Transmission
TransmissionTriple Range
Gears12 forward and 3 reverse
Clutch11-inch dry disc
Oil capacity17 qts
16.1 L
Speeds
With 14.9-24 rear tires.

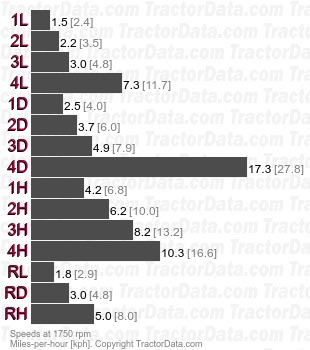

430CK Construction King Triple Range  speeds
Transmission
Typemechanical shuttle
Gears4 forward and reverse
Clutch11-inch dry disc
Oil capacity17 qts
16.1 L
Speeds

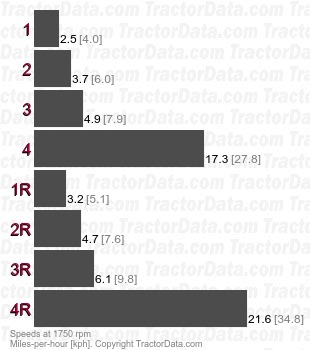

430CK Construction King  mechanical shuttle speeds
