John Deere 700A
| | 1966 - 1972 |
| Industrial tractor |
|
| Production |
| Manufacturer | John Deere
|
| Industrial tractor |
| Built in Waterloo, Iowa, USA |
| Total built | 370
|
| Variants |
| 5020 | farm tractor
|
| John Deere 700A Power |
| Engine | 143 hp
106.6 kW
|
| Mechanical |
| Two-wheel drive |
| Steering | hydraulic power
|
| Hydraulic powered wet disc brakes |
| Open operator station. |
| Capacity |
| Fuel | 68 gal
257.4 L
|
| Hydraulic system | 17 gal
64.3 L
|
| Hydraulics |
| Type | closed center
|
| Capacity | 17 gal
64.3 L
|
| Pressure | 2000 psi
137.9 bar
|
| Valves | 1 or 2 optional
|
| Total flow | 25.7 gpm
97.3 lpm
|
| Power Take-off (PTO) |
| Rear PTO | optional independent
|
| Rear PTO Type | 1000
|

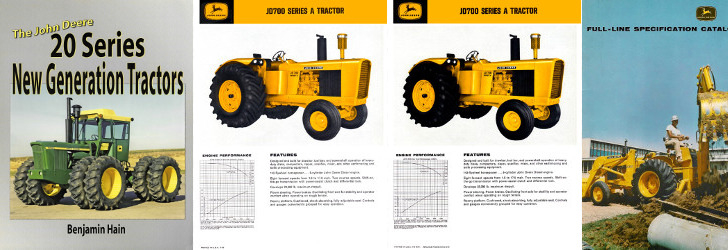

| References |
 |
| The John Deere 20 Series New Generation Tractors by Benjamin Hain |
| JD700 Series A Tractor published in 1965, by John Deere |
| JD700 Series A Tractor published in 1966, by John Deere |
| Full-Line Specification Catalog published in 1966, by John Deere |
| Page information |
 |
| Copyright 2024 TractorData.com® |
| TractorData is a family-owned small business located in Minnesota that has been providing reference information on tractors since 1999. |
| Peter Easterlund - owner/author |
| Email: Peter@TractorData.com |
| Updated on December 22, 2016 |
http://techpubs.deere.com/ - Official operator manuals for purchase or download from Deere.
|
©2000-2024 - TractorData.com®. Notice: Every attempt is made to ensure the data listed
is accurate. However, differences between sources, incomplete listings,
errors, and data entry mistakes do occur.
Consult official
literature from the manufacturer before attempting any service or repair.
Engine details ...
John Deere 700A photos...
Full dimensions and tires ...
