| | 1965 - 1971 |
| Industrial tractor |
|
Series map:
300
400
500
43.0hp
59.0hp
80.0hp
| Transmission options |
| 8-speed constant mesh |
| 8-speed power shuttle |
| Transmission |
| Type | constant mesh
|
| Gears | 8 forward and 4 reverse
|
| Clutch | 279.4mm dry disc
|
| Oil capacity | 43 qts
40.7 L
|

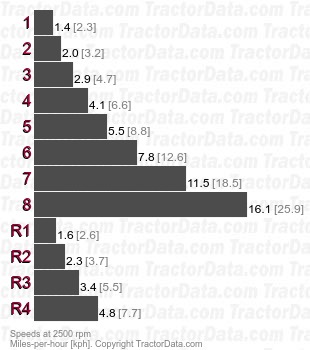

| Speeds |
| With 16.9-24 rear tires. |
|
| Transmission |
| Transmission | Direction Reverser
|
| Type | power shuttle
|
| Gears | 8 forward and 4 reverse
|
| Clutch | hydraulic wet disc
|
| Oil capacity | 43 qts
40.7 L
|
| Optional Direction Reverser allows for clutchless power shifts from forward to reverse in gears 1 to 4. |
| Speeds |
| With 16.9-24 rear tires. |
|
