John Deere 301A
| | 1974 - 1985 |
| Industrial tractor |
|
| Production |
| Manufacturer | John Deere
|
| Industrial tractor |
| Built in Dubuque, Iowa, USA |
| Variants |
| 1020 | farm tractor
|
| John Deere 301A Power |
| Engine (gross) | 46 hp
34.3 kW
|
| Engine (net) | 43 hp
32.1 kW
|
| Mechanical |
| Two-wheel drive |
| Final drives | inboard planetary
|
| Differential lock | mechanical rear
|
| Power steering |
| Hydraulic wet disc brakes |
| Open operator station. Available two-post ROPS and canopy. |
| Capacity |
| Fuel | 19.5 gal
73.8 L
|
| Hydraulic system | 10 gal
37.9 L
|
| Hydraulics |
| Type | closed center
|
| Capacity | 10 gal
37.9 L
|
| Pressure | 2350 psi
162.0 bar
|
| Total flow | 13 gpm
49.2 lpm
|
| Tractor hitch |
| Rear Type | II/I OptOptional
|
| Power Take-off (PTO) |
| Rear PTO | independent OptOptional
|
| Rear PTO Type | 540
|
| Mid PTO | live OptOptional
|
| Mid PTO Type | 1000
|

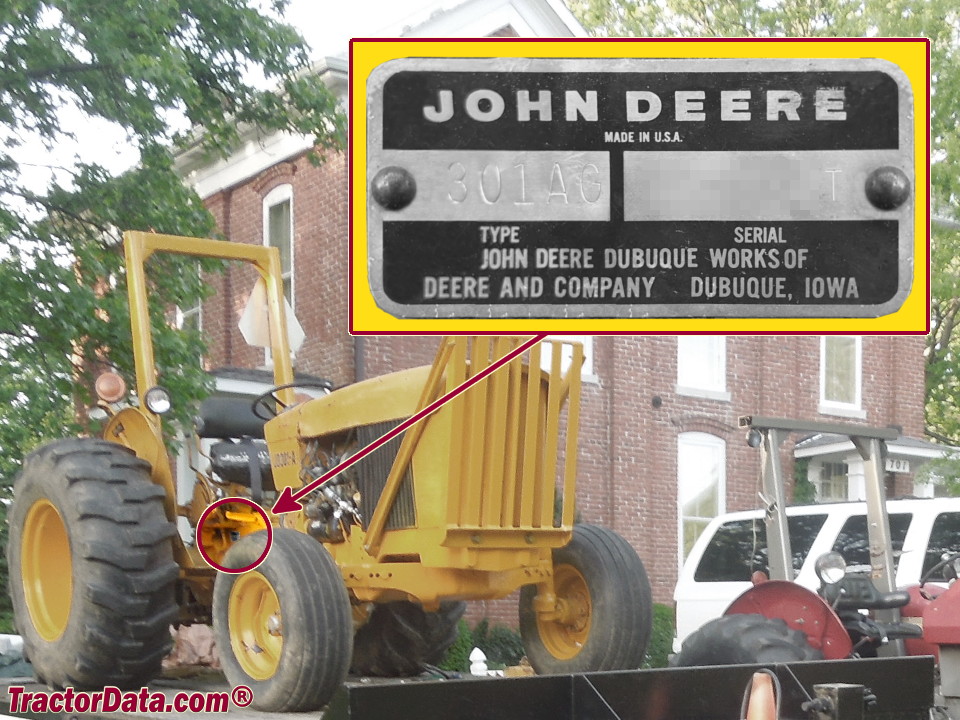

| 301A Serial Number Location |
 |
| Serial number plate on the right side of the John Deere 301A rear axle housing. |
| Electrical |
| Ground | negative
|
| Batteries | 1
|
| | 2 OptOptional
|
| Battery volts | 12
|
| References |
 |
| 301A Tractor published in 1981, by John Deere |
| 301A Utility Loader published in 1981, by John Deere |
| Utility Tractors, Loaders, Backhoes published in 1977, by John Deere |
| Utility Purchasing Guide published in 1978, by John Deere |
| Utility Purchasing Guide published in 1979, by John Deere |
| Industrial Equipment Division published in 1980, by John Deere |
| Utility Equipment Purchasing Guide published in 1981, by John Deere |
