Tractors > John Deere > 302

John Deere 302

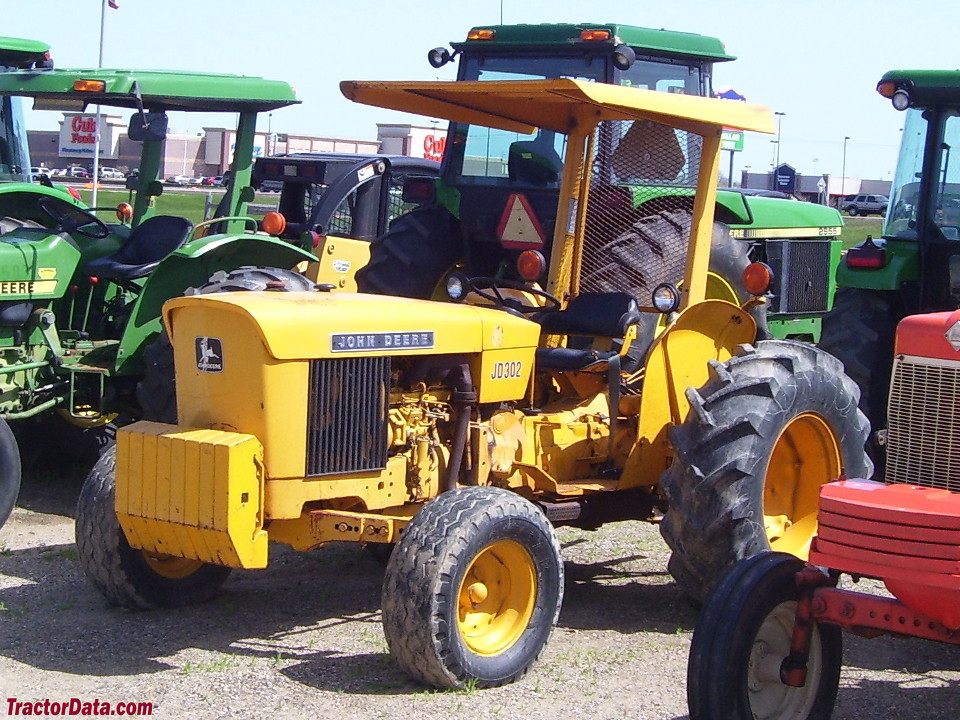

John Deere 302 tractor photo
1973 - 1981
Industrial tractor
Series map:
302
52.0hp
Production
ManufacturerJohn Deere
Industrial tractor
Built in Dubuque, Iowa, USA
John Deere 302 Engines
John Deere 2.7L 3-cyl diesel
John Deere 2.7L 3-cyl gasoline
Engine details ...
John Deere 302 Transmissions
8-speed gear
8-speed hydraulic shuttle
Transmission details ...
John Deere 302 Power
Engine (gross)52 hp
38.8 kW
Engine (net)50 hp
37.3 kW
Engine50 hp
37.3 kW
Mechanical
Two-wheel drive
Final drivesinboard planetary
Power steering
Hydraulic wet disc brakes
Open operator station. Two-post ROPS optional.
Photos
John Deere 302
John Deere 302 photos...
Capacity
Fuel19.5 gal
73.8 L
Hydraulic system8.5 gal
32.2 L
Hydraulics
Typeclosed center
Capacity8.5 gal
32.2 L
Pressure2300 psi
158.6 bar
Total flow13 gpm
49.2 lpm
Tractor hitch
Rear TypeII/I OptOptional
Power Take-off (PTO)
Rear PTOindependent (optional)
Rear PTO Type540 (1.375)
Dimensions & Tires
Wheelbase74.4 inches
188 cm
Weight4616 lbs
2093 kg
Front tire6.50-16
Rear tire14.9-24
Full dimensions and tires ...
John Deere 302 attachments
front-end loader
Attachment details ...

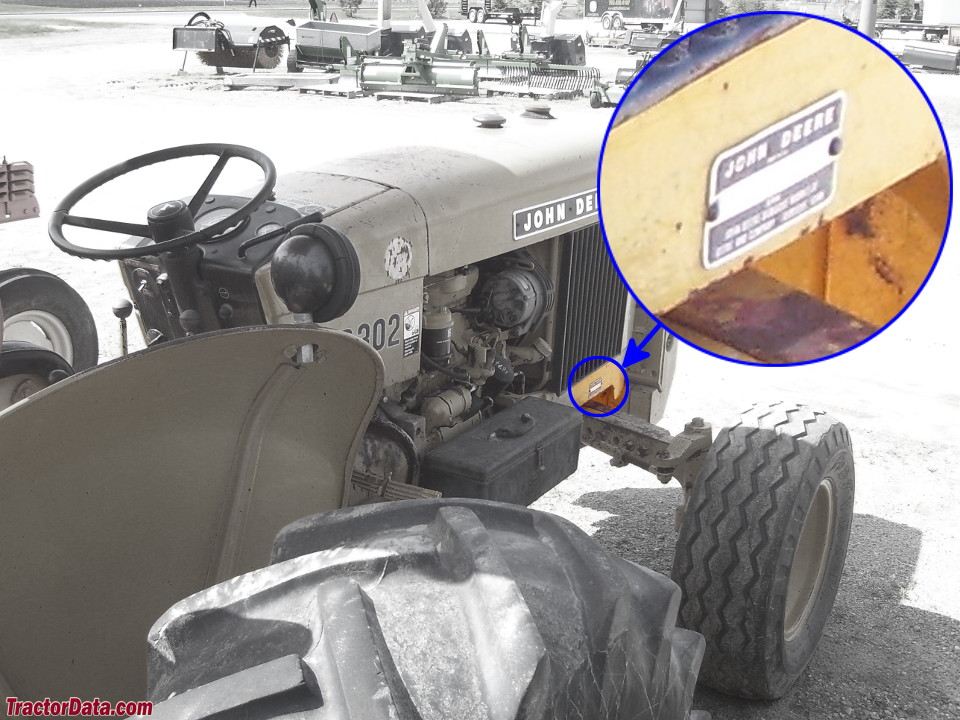

302 Serial Number Location
John Deere 302 serial number location
Serial number plate can be in two different locations on the John Deere 302. It may be on the right side of tractor's frame, above and behind front axle. Or it can be on the right side of the transmission case, just ahead of the rear axle.
Electrical
Groundnegative
Battery volts12
References

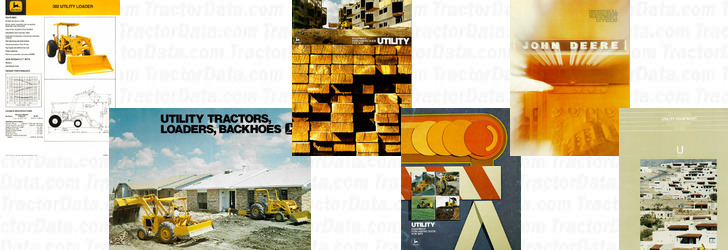

302 references literature
302 Utility Loader published in 1981, by John Deere
Utility Tractors, Loaders, Backhoes published in 1977, by John Deere
Utility Purchasing Guide published in 1978, by John Deere
Utility Purchasing Guide published in 1979, by John Deere
Industrial Equipment Division published in 1980, by John Deere
Utility Equipment Purchasing Guide published in 1981, by John Deere
