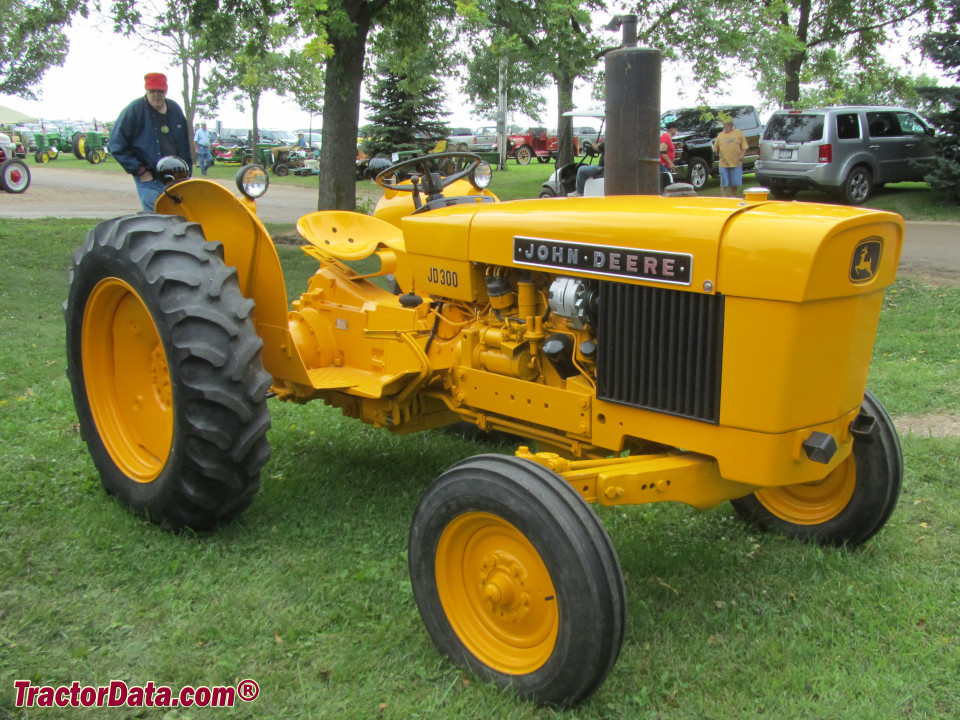

John Deere 300
| | 1965 - 1973 |
| Industrial tractor |
|
| Production |
| Manufacturer | John Deere
|
| Industrial tractor |
| Built in Dubuque, Iowa, USA |
| Variants |
| 1020 | farm tractor
|
| John Deere 300 Power |
| Engine | 43 hp
32.1 kW
|
| Mechanical |
| Two-wheel drive |
| Final drives | planetary
|
| Steering | manual
|
| | power OptOptional
|
| Hydraulic wet disc brakes |
| Open operator station. Cab available. |
| Capacity |
| Fuel | 16.5 gal
62.5 L
|
| Hydraulic system | 10 gal
37.9 L
|
| Hydraulics |
| Type | closed center
|
| Capacity | 10 gal
37.9 L
|
| Pressure | 2250 psi
155.1 bar
|
| Valves | 1 or 2 OptOptional
|
| Total flow | 6.5 gpm
24.6 lpm
|
| | 13 gpmOptOptional
49.2 lpm
|
| | 23.5 gpmOptOptional
88.9 lpm
|
| Tractor hitch |
| Rear Type | II/I
|
| Power Take-off (PTO) |
| Rear PTO | transmission OptOptional
|
| | live OptOptional
|
| Rear PTO Type | 540
|
| | 540/1000
|
| Mid PTO | live OptOptional
|
| Mid PTO Type | 1000
|

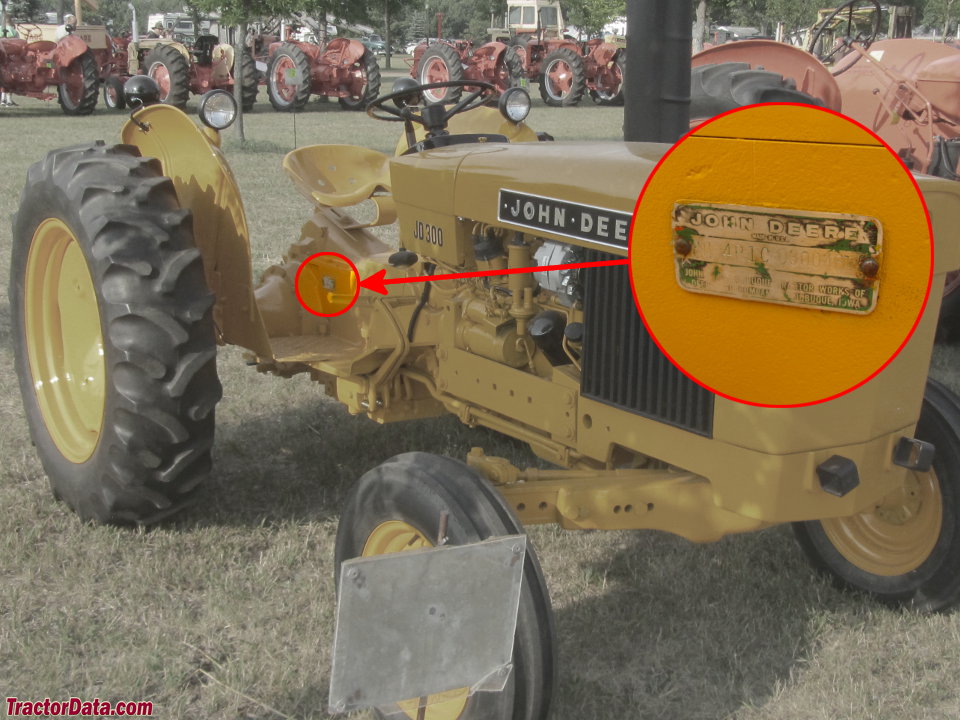

| 300 Serial Number Location |
 |
| Right side of differential case, below the seat. |
| Questions |
I own a JD Industrial 300. Under the tractor, there is a pto driven sprocket. My question is, what was the attachment(s) which is driven by this?
A mid-mounted mower, like the model 3700, would have been a common use for the mid PTO.
|
| Email: Peter@TractorData.com |
| References |
 |
| The John Deere 20 Series New Generation Tractors by Benjamin Hain |
| JD300 Loader published in 1965, by John Deere |
| Profit from JD300A - JD400A published in 1970, by John Deere |
| Full-Line Specification Catalog published in 1966, by John Deere |
| Utility Purchasing Guide published in 1972, by John Deere |
| Utility Purchasing Guide published in 1973, by John Deere |
