Kubota L1-385

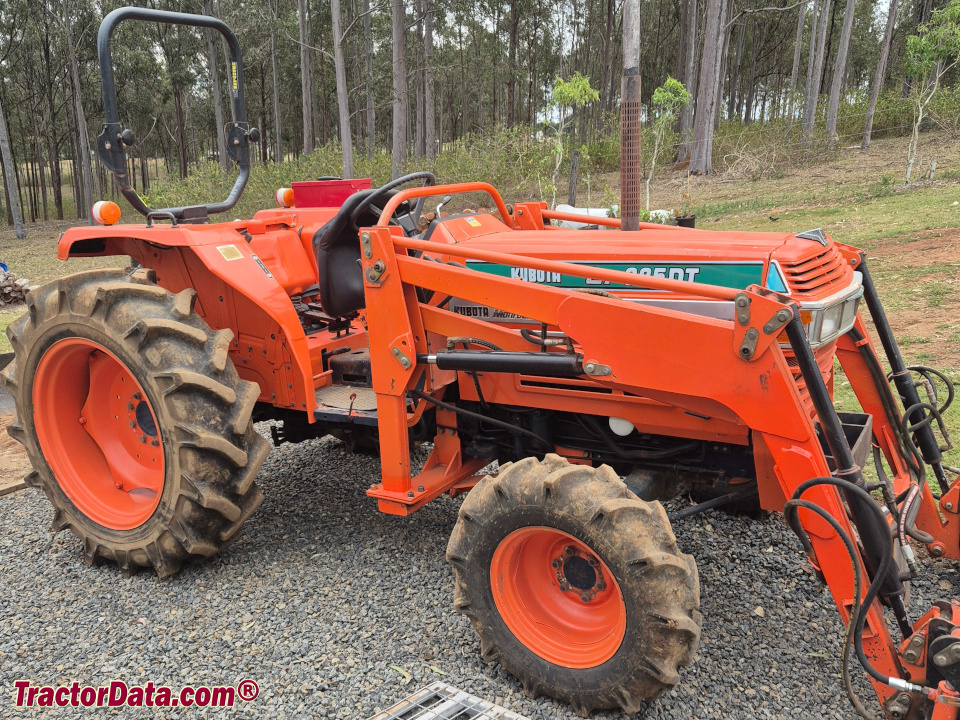

Kubota L1-385 tractor photo
1987 - 1991
L1 Series
Compact Utility tractor
Series map:
L1-345
L1-385
L1-435
25.4kw
28.3kw
32.1kw
Production
ManufacturerKubota
Compact Utility tractor
Variants
L1-385D4WD
L1-385DNloader-compatible
Kubota L1-385 Engine
Kubota 2.2L 5-cyl diesel
Fuel tank12.2 gal
46.2 L
Engine details ...
Kubota L1-385 Power
Engine38 hp
28.3 kW
PTO (claimed)36.7 hp
27.4 kW
Mechanical
Two- or four-wheel drive
Four-post ROPS.
Photos
No photos of the Kubota L1-385 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Tractor hitch
Rear TypeJIS1
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540 (1.375)
Engine RPM544@2600
 714@2600
 912@2600
 1196@2600
Dimensions & Tires
Wheelbase76.6 inches
194 cm
Weight3594 to 3814 pounds
Front tire5.50-16
2WD Rear tire12.4-28
Full dimensions and tires ...
Electrical
Groundnegative
Battery volts12
References
L1-385 references literature
Operator Manual L1 (30810-1921-4)
