Tractors > Fiat > 312R

Fiat 312R Engine



Fiat 312R tractor photo
1959 - 1964
Utility tractor
Series map:
312R
22.4kw
Engine Detail
Fiat
diesel
4-cylinder
liquid-cooled inline
Displacement116 ci
1.9 L
Bore/Stroke3.23x3.54 inches
82 x 90 mm
Power30 hp
22.4 kW
Compression22.5:1
Rated RPM2200
Torque75.5 lb-ft
102.4 Nm
Torque RPM1600
Firing order1-3-4-2
Starterelectric
Starter volts24
Oil capacity5.3 qts
5.0 L
Coolant capacity10.6 qts
10.0 L

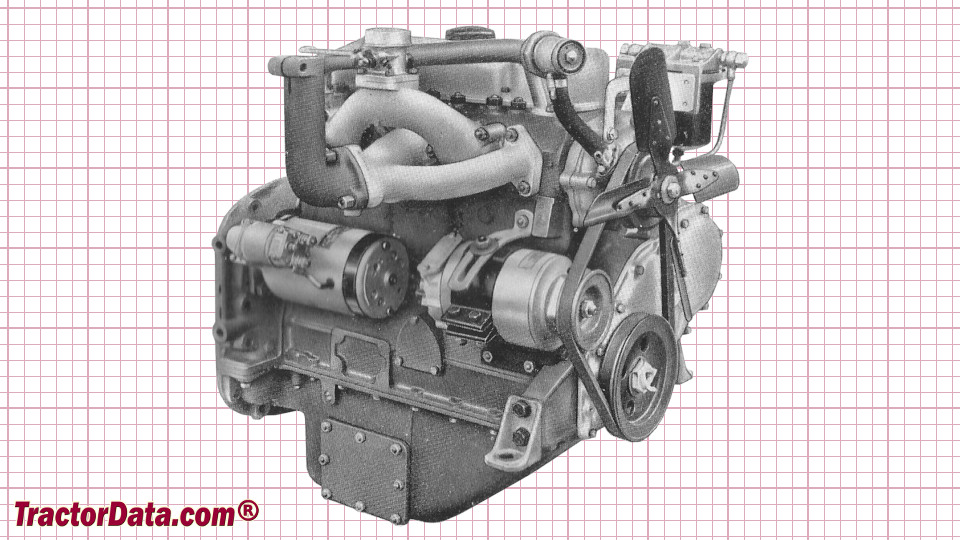

Fiat 312R Engine
Fiat 312R engine image
