| | 2023 - |
| M7-4 Series | | Row-Crop tractor |
|
Series map:
M7-154
M7-174
133.3hp*
155.6hp*
*Estimated engine power for comparison only.
| Engine Detail |
| Kubota V6108 |
| turbocharged intercooled diesel |
| 4-cylinder |
| liquid-cooled inline |
| Displacement | 374 ci
6.1 L
|
| Bore/Stroke | 4.65x5.51 inches
118 x 140 mm
|
| Emissions | Tier IV
|
| Maximum Power (gross) | 168 hp
125.3 kW
|
| Fuel system | direct injection
|
| Rated RPM | 2100
|
| Starter | electric
|
| Starter volts | 12
|

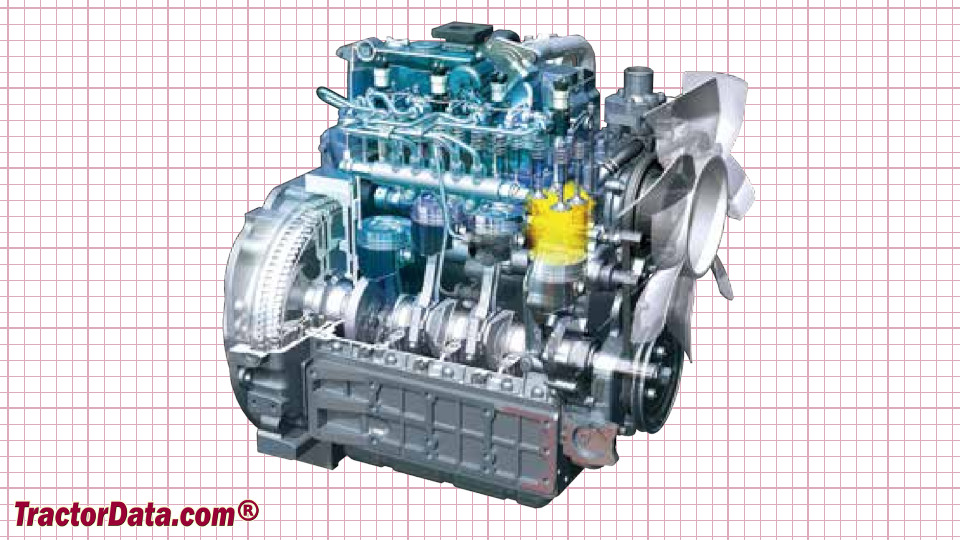

| Kubota M7-174 Engine |
 |
