Yanmar AF-30 Transmission


Yanmar AF-30 tractor photo
1992 - 1997
AF Series
Compact Utility tractor
Series map:
AF-28
AF-30
AF-33
20.6kw
22.1kw
24.3kw
Transmission options
16-speed shuttle
16-speed four-speed power shift
Transmission
Typeshuttle
Gears16 forward and reverse
Four gears in three ranges, plus creeper range with mechincal shuttle.
Speeds

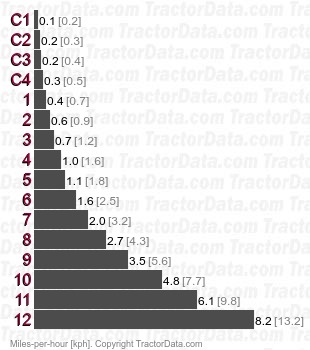

AF-30  shuttle speeds
Shift Pattern

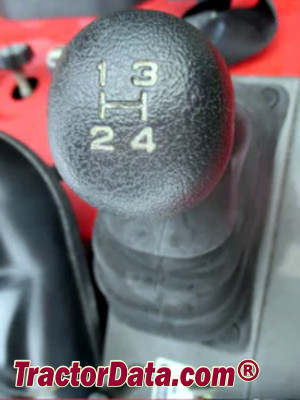

Yanmar AF-30 transmission controls
Transmission
Typefour-speed power shift
Gears16 forward and reverse
Four power shift gears in three ranges, plus creeper range with power shuttle
Shift Pattern

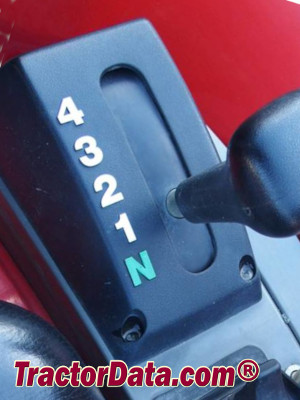

Yanmar AF-30 transmission controls
