| | 1992 - 1997 |
| AF Series | | Compact Utility tractor |
|
Series map:
AF-22
AF-24
16.2kw
17.7kw
| Transmission options |
| 16-speed shuttle |
| 16-speed four-speed power shift |
| Transmission |
| Type | shuttle
|
| Gears | 16 forward and reverse
|
| Four gears in three ranges, plus creeper range with mechincal shuttle. |

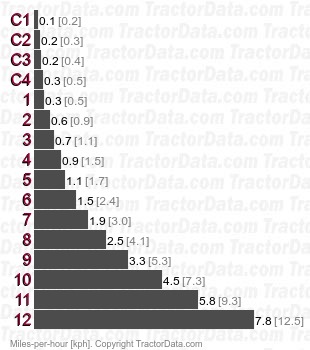

| Speeds |
|
| Shift Pattern |
 |
| Transmission |
| Type | four-speed power shift
|
| Gears | 16 forward and reverse
|
| Four power shift gears in three ranges, plus creeper range with power shuttle |
| Shift Pattern |
 |
