Bad Boy 4035



Bad Boy 4035 tractor photo
2021 -
40 Series
Compact Utility tractor
TYM built
Series map:
4025
4035
24.5hp
34.9hp
Production
DistributorBad Boy
ManufacturerTYM
Compact Utility tractor
Variants
4035HROPS
4035CHCab
Bad Boy 4035 Engine
TYM 1.7L 3-cyl diesel
Fuel tank7.1 gal
26.9 L
Engine details ...
Bad Boy 4035 Transmission
hydrostatic
Transmission details ...
Bad Boy 4035 Power
Engine (gross)34.9 hp
26.0 kW
PTO (claimed)29.5 hp
22.0 kW
Mechanical
Four-wheel drive
Differential lockmechanical rear
Power steering
Wet disc brakes
Two-post folding ROPS. Cab available with air-conditioning.
Photos
No photos of the Bad Boy 4035 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Hydraulics
Typeopen center
Pump flow12.6 gpm
47.7 lpm
Total flow8.2 gpm
31.0 lpm
Steering flow4.4 gpm
16.7 lpm
Tractor hitch
Rear TypeI
Rear lift (at 24"/610mm)1100 lbs
498 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540 (1.375)
Engine RPM560@2600
Dimensions & Tires
Wheelbase65.7 inches
166 cm
Weight3164 to 3551 pounds
Full dimensions and tires ...
Bad Boy 4035 attachments
front-end loader
backhoe
Attachment details ...
4035 Serial Numbers
Location:Serial number decal on the right side of the tractor frame, above the front axle.
Electrical
Groundnegative
Charging systemalternator
Charging amps50
Battery CCA540
Battery volts12
References

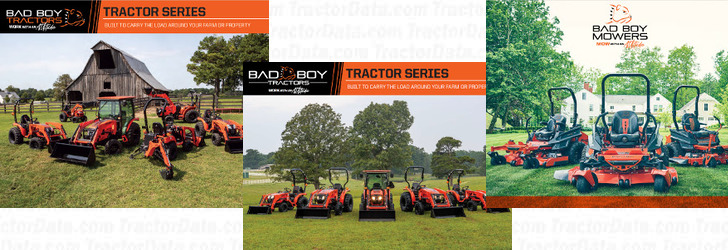

4035 references literature
Tractor Series published in 2021, by Bad Boy
Tractor Series published in 2023, by Bad Boy
Mow with an Attitude published in 2024, by Bad Boy

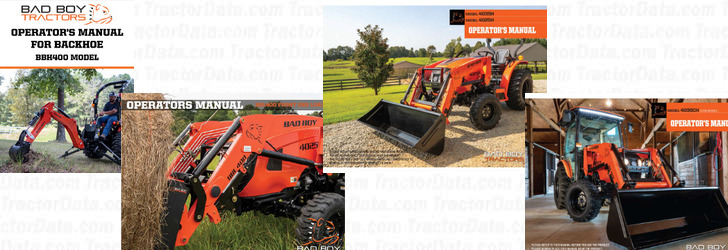

4035 manuals literature
Operator's Manual Model BBH400 Backhoe published in 2022
Operator's Manual Model BBL400 Front End Loader published in 2022
Operator's Manual Model 4025H/4035H published in 2021
Operator's Manual Model 4035CH published in 2021
