| | 2021 - 2023 |
| 20 Series | | Sub-Compact Utility tractor | | TYM built |
|

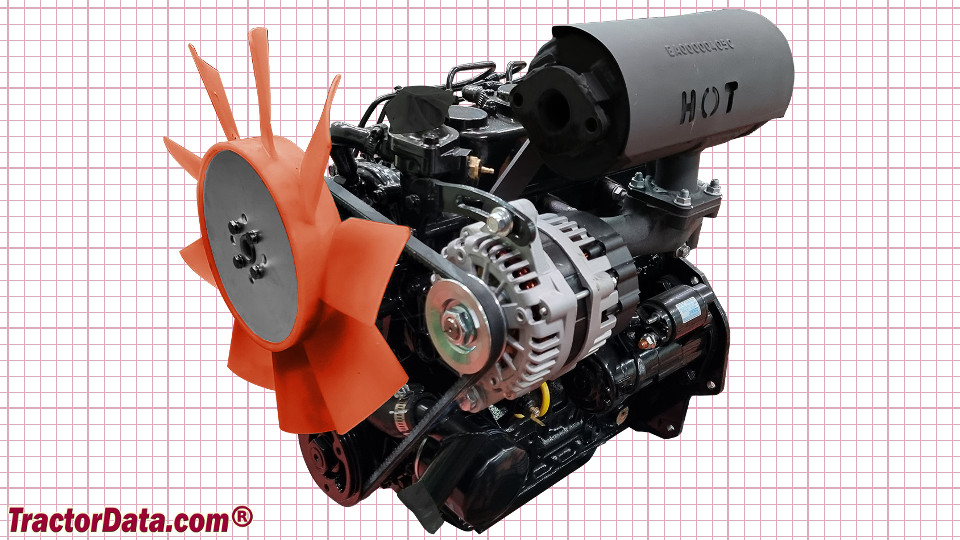

| Engine Detail |
| TYM A1100N2 |
| diesel |
| 3-cylinder |
| liquid-cooled inline |
| Displacement | 70.7 ci
1.2 L
|
| Bore/Stroke | 3.07x3.23 inches
78 x 82 mm
|
| Power (gross) | 24 hp
17.9 kW
|
| Fuel system | indirect injection
|
| Air cleaner | dry
|
| Compression | 21.5:1
|
| Rated RPM | 2600
|
| Starter | electric
|
| Starter volts | 12
|
| Bad Boy 2024 Engine |
 |
