CaseIH Steiger 715 Quadtrac Engine


CaseIH Steiger 715 Quadtrac tractor photo
2024 -
Steiger Quadtrac Series
Articulated Crawler tractor
Series map:
Steiger 645 Quadtrac
Steiger 715 Quadtrac
636.2hp
705.2hp
Engine Detail
FPT Cursor 16
turbocharged diesel
6-cylinder 24-valve
liquid-cooled
Displacement970 ci
15.9 L
Bore/Stroke5.55x6.69 inches
141 x 170 mm
EmissionsTier IV
Rated Power (gross)705.2 hp
525.9 kW
Maximum Power (gross)767.3 hp
572.2 kW
Rated RPM2100
Starterelectric
Starter volts12
CaseIH Steiger 715 Quadtrac Engine

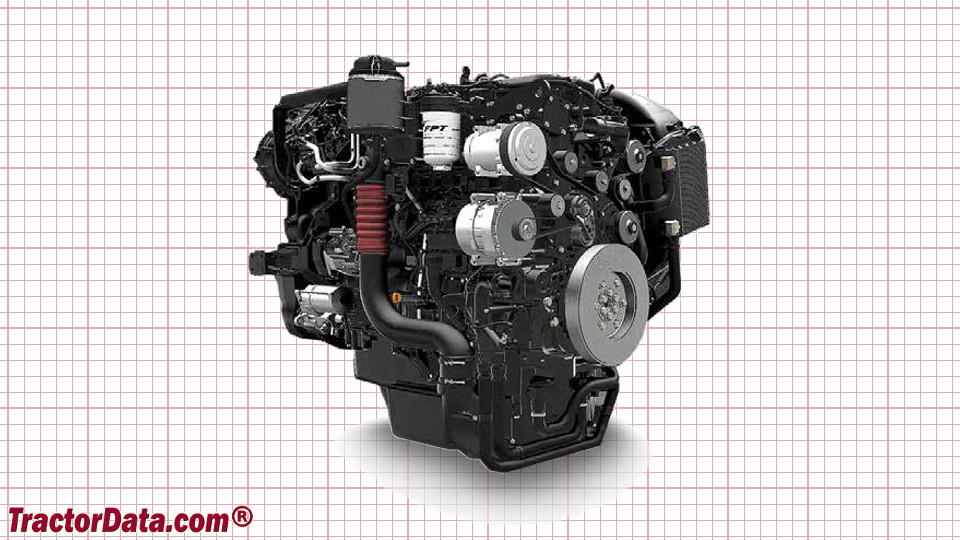

CaseIH Steiger 715 Quadtrac engine image
