CaseIH Steiger 555 Quadtrac Engine


CaseIH Steiger 555 Quadtrac tractor photo
2024 -
Steiger Quadtrac Series
Articulated Crawler tractor
Series map:
Steiger 525 Quadtrac
Steiger 555 Quadtrac
Steiger 595 Quadtrac
517.8hp
547.4hp
586.9hp
Engine Detail
FPT Cursor 13
turbocharged diesel
6-cylinder 24-valve
liquid-cooled
Displacement787 ci
12.9 L
Bore/Stroke5.31x5.91 inches
135 x 150 mm
EmissionsTier IV
Rated Power (gross)547.4 hp
408.2 kW
Maximum Power (gross)605.6 hp
451.6 kW
Rated RPM2100
Starterelectric
Starter volts12
CaseIH Steiger 555 Quadtrac Engine

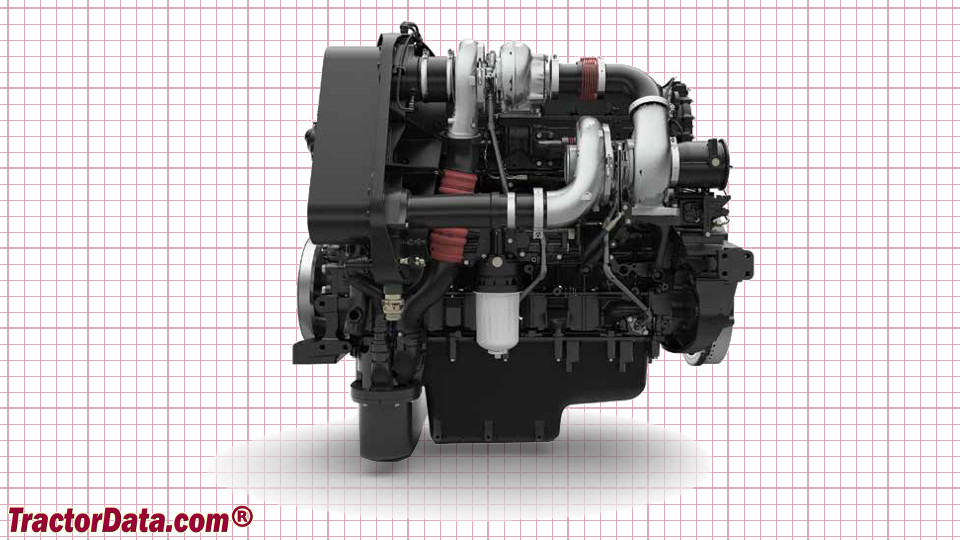

CaseIH Steiger 555 Quadtrac engine image
