New Holland T9.655 Engine


New Holland T9.655 tractor photo
2024 -
T9 Series
Four-wheel Drive (4WD) tractor
Series map:
T9.615
T9.655
T9.700
547.4hp
586.9hp
636.2hp
Engine Detail
FPT Cursor 13
turbocharged intercooled aftercooled diesel
6-cylinder 24-valve
liquid-cooled
Displacement787 ci
12.9 L
Bore/Stroke5.31x5.91 inches
135 x 150 mm
EmissionsTier IV
Rated Power (gross)586.9 hp
437.7 kW
Maximum Power (gross)647 hp
482.5 kW
Rated RPM2100
Starterelectric
Starter volts12
New Holland T9.655 Engine

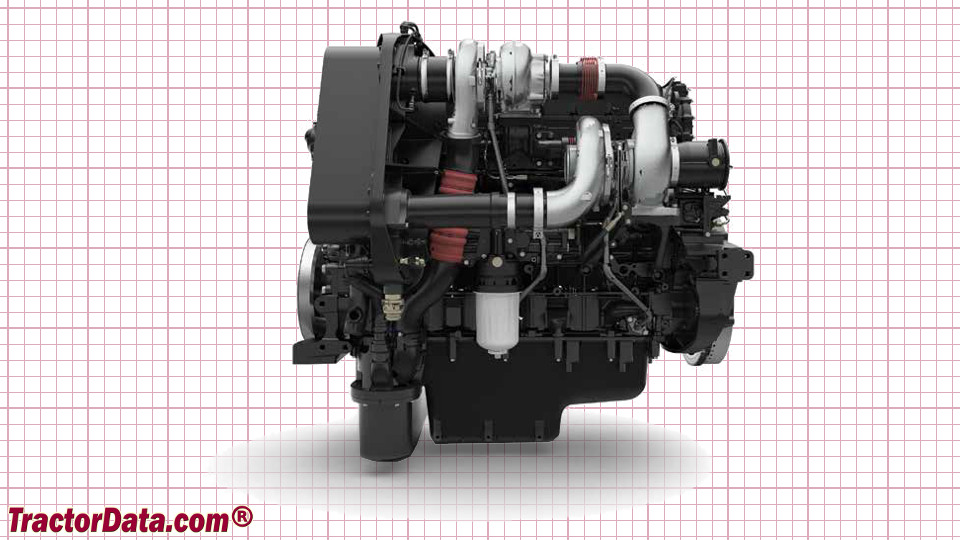

New Holland T9.655 engine image
