New Holland T9.520 Transmission


New Holland T9.520 tractor photo
2024 -
T9 Series
Four-wheel Drive (4WD) tractor
Series map:
T9.470
T9.520
T9.580
419.2hp
468.5hp
517.8hp
Transmission options
17-speed full power shift
continuously-variable transmission
Transmission
TransmissionUltra Command
Typefull power shift
Gears17 forward and 2 reverse
Speeds
T9.520 Ultra Command full power shift speeds
New Holland T9.520 Transmission

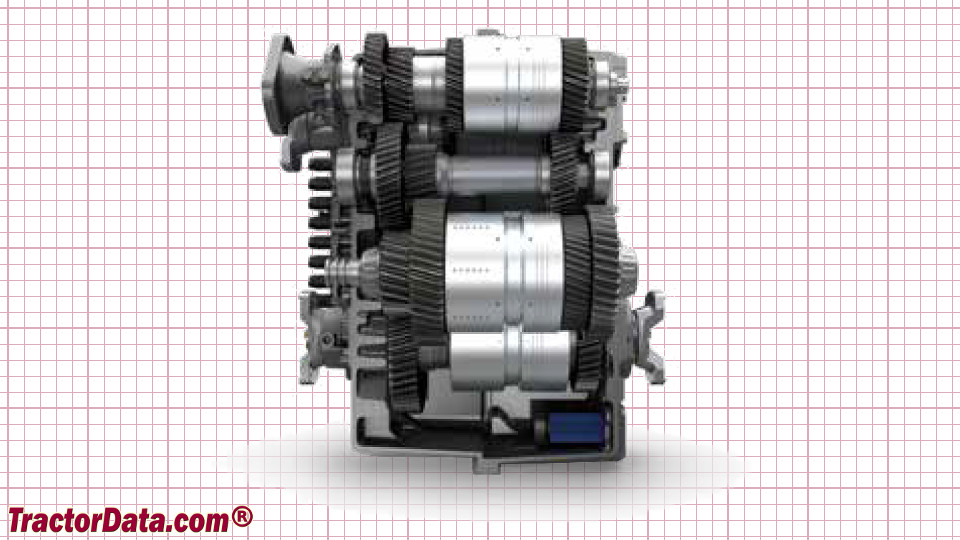

New Holland T9.520 transmission image
Transmission
TransmissionAuto Command
Typecontinuously-variable transmission
Gearsinfinite forward and reverse
New Holland T9.520 Transmission

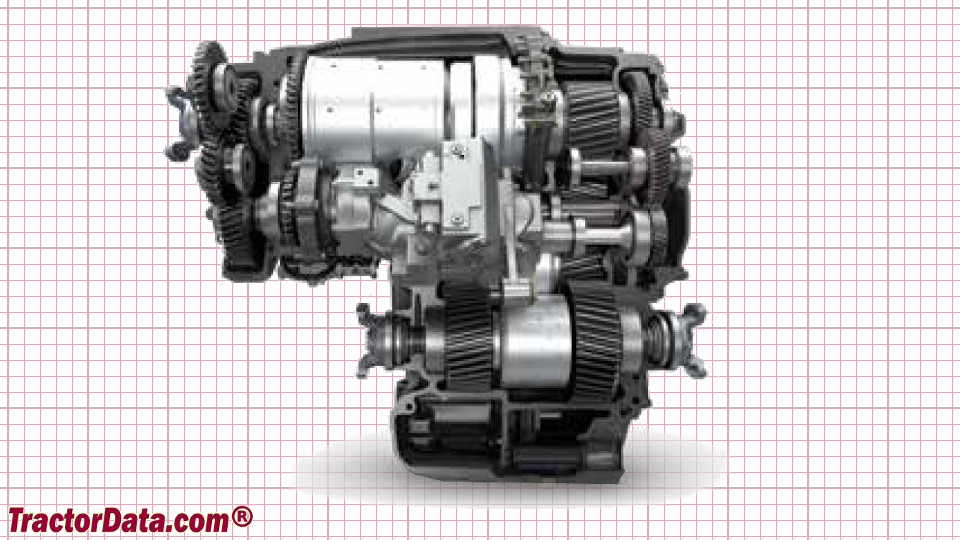

New Holland T9.520 transmission image
