New Holland T9.520 Engine


New Holland T9.520 tractor photo
2024 -
T9 Series
Four-wheel Drive (4WD) tractor
Series map:
T9.470
T9.520
T9.580
419.2hp
468.5hp
517.8hp
Engine Detail
FPT Cursor 13
turbocharged aftercooled diesel
6-cylinder 24-valve
liquid-cooled
Displacement787 ci
12.9 L
Bore/Stroke5.31x5.91 inches
135 x 150 mm
EmissionsTier IV
Rated Power (gross)468.5 hp
349.4 kW
Maximum Power (gross)514.9 hp
384.0 kW
Rated RPM2100
Starterelectric
Starter volts12

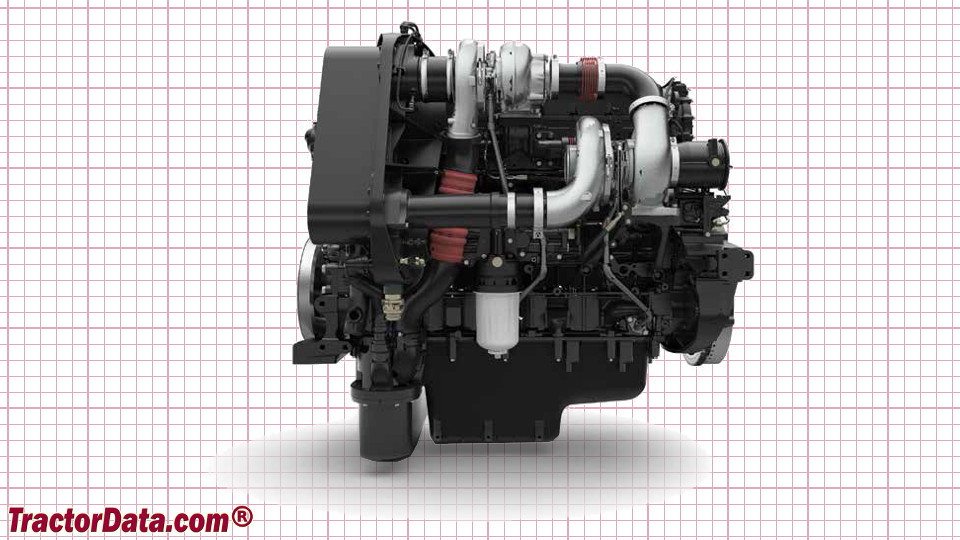

New Holland T9.520 Engine
New Holland T9.520 engine image
