Tractors > CaseIH > Magnum 400 Rowtrac

CaseIH Magnum 400 Rowtrac Tests



CaseIH Magnum 400 Rowtrac tractor photo
2019 -
Magnum Series
Half-track Crawler tractor
Series map:
Magnum 380 Rowtrac
Magnum 400 Rowtrac
373.0hp
391.0hp
OCED Tractor Test 2243

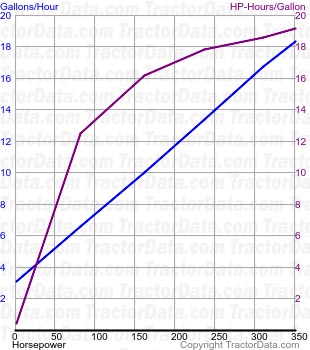

Magnum 400 Rowtrac fuel use from test 1203
OCED Tractor Test 2243
Diesel Power shift half-track
October 6 - 12, 2021
Link: OCED Tractor Test 2243 file
PTO performance
Max power388.38 hp
289.6 kW
Fuel use20.0 gal/hour
75.7 l/hour
Power at rated engine speed350.49 hp
261.4 kW
Fuel use18.3 gal/hour
69.3 l/hour
Power at rated PTO speed382.58 hp
285.3 kW
Fuel use19.6 gal/hour
74.2 l/hour
Drawbar performance
Max power294.07 hp
219.3 kW
Fuel use18.3 gal/hour
69.3 l/hour
Gear 7 used for power test.
Max pull34744 lbs
15759 kg
Gear 4 used for pull test.
