CaseIH Magnum 380 Rowtrac Engine


CaseIH Magnum 380 Rowtrac tractor photo
2019 -
Magnum Series
Half-track Crawler tractor
Series map:
Magnum 340 Rowtrac
Magnum 380 Rowtrac
Magnum 400 Rowtrac
335.0hp
373.0hp
391.0hp
Engine Detail
FPT
variable-geometry turbocharged diesel
6-cylinder 24-valve
liquid-cooled inline
Displacement531 ci
8.7 L
Bore/Stroke4.606x5.315 inches
117 x 135 mm
EmissionsTier IV
Rated Power (gross)373 hp
278.1 kW
Maximum Power (gross)412 hp
307.2 kW
 429 hp (boost)
319.9 kW
Rated RPM2000
Torque1364 lb-ft
1849.6 Nm
Torque RPM1400
Starterelectric
Starter volts12
CaseIH Magnum 380 Rowtrac Engine

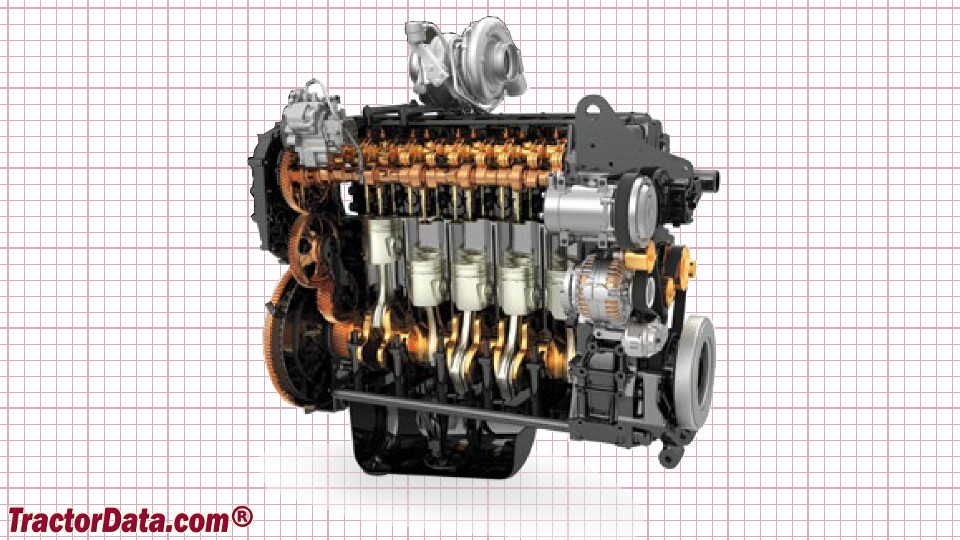

CaseIH Magnum 380 Rowtrac engine image
