Tractors > CaseIH > Magnum 400

CaseIH Magnum 400 Engine



CaseIH Magnum 400 tractor photo
2019 -
Magnum Series
Row-Crop tractor
Series map:
Magnum 380
Magnum 400
373.0hp
391.0hp
Engine Detail
FPT
variable-geometry turbocharged diesel
6-cylinder 24-valve
liquid-cooled inline
Displacement531 ci
8.7 L
Bore/Stroke4.606x5.315 inches
117 x 135 mm
EmissionsTier IV
Rated Power (gross)391 hp
291.6 kW
Maximum Power (gross)429 hp
319.9 kW
Rated RPM2000
Torque1364 lb-ft
1849.6 Nm
Torque RPM1400
Starterelectric
Starter volts12

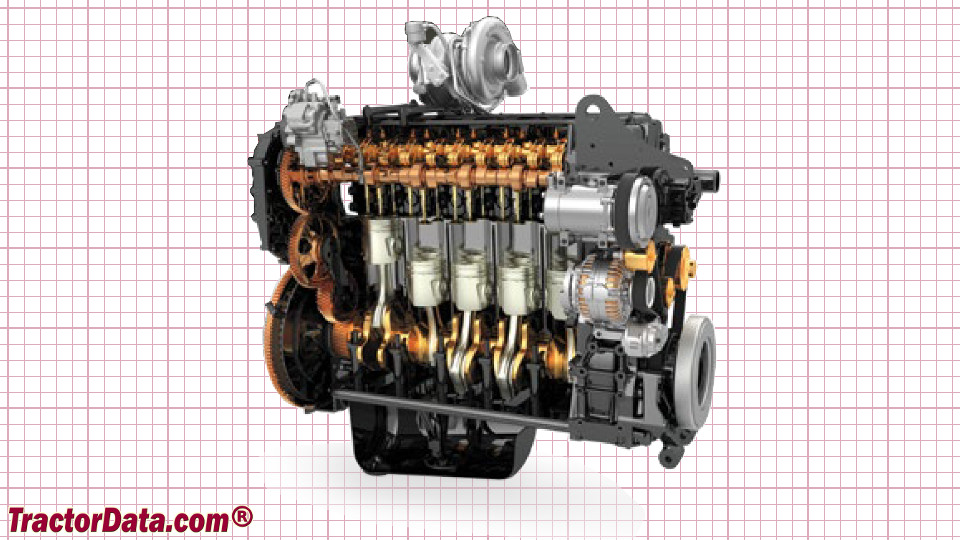

CaseIH Magnum 400 Engine
CaseIH Magnum 400 engine image
