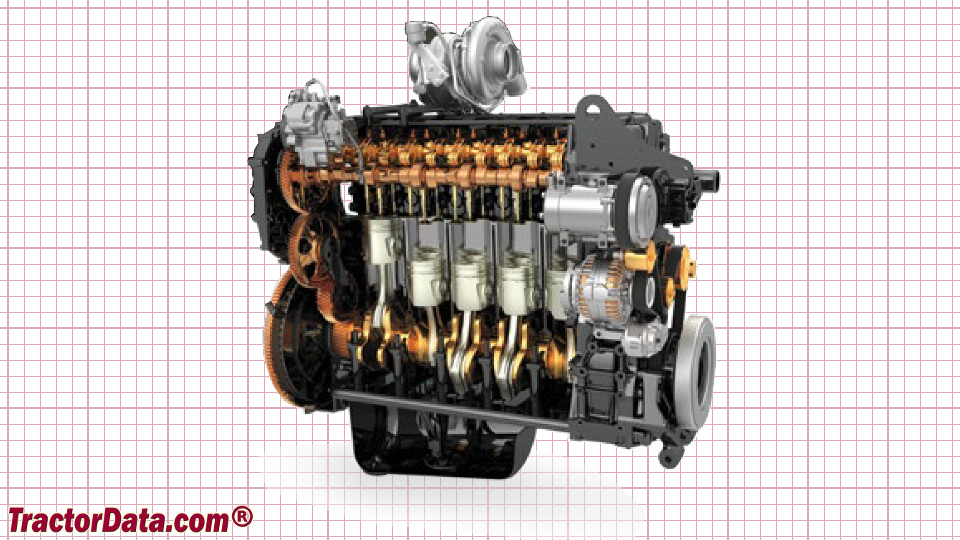

CaseIH Magnum 380 Engine
|
|
| Engine Detail | |
| FPT | |
| variable-geometry turbocharged diesel | |
| 6-cylinder 24-valve | |
| liquid-cooled inline | |
| Displacement | 531 ci 8.7 L |
| Bore/Stroke | 4.606x5.315 inches 117 x 135 mm |
| Emissions | Tier IV |
| Rated Power (gross) | 373 hp 278.1 kW |
| Maximum Power (gross) | 412 hp 307.2 kW |
| 429 hp (boost) 319.9 kW | |
| Rated RPM | 2000 |
| Torque | 1364 lb-ft 1849.6 Nm |
| Torque RPM | 1400 |
| Starter | electric |
| Starter volts | 12 |
| CaseIH Magnum 380 Engine | |
 |
