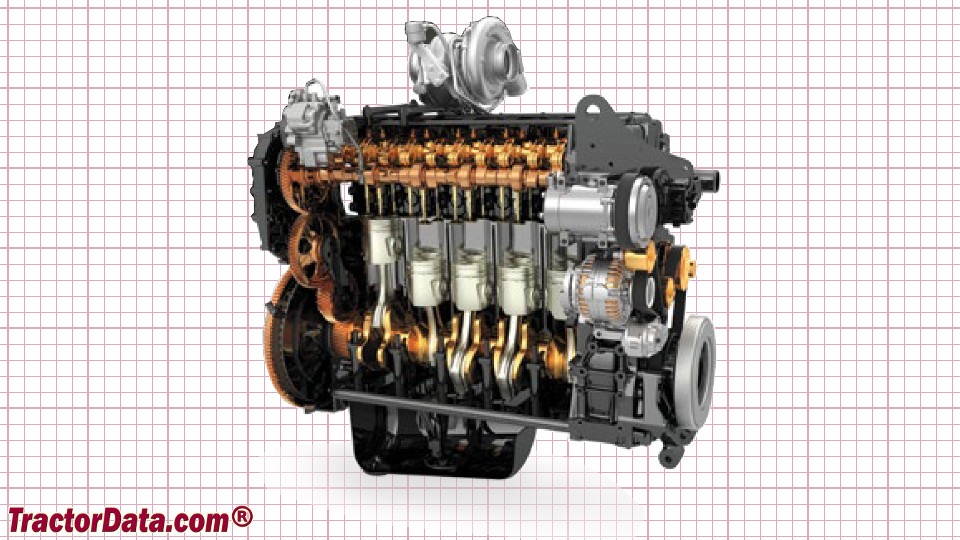

CaseIH Magnum 310 Engine
|
|
| Engine Detail | |
| FPT | |
| variable-geometry turbocharged diesel | |
| 6-cylinder 24-valve | |
| liquid-cooled inline | |
| Displacement | 531 ci 8.7 L |
| Bore/Stroke | 4.606x5.315 inches 117 x 135 mm |
| Emissions | Tier IV |
| Rated Power (gross) | 307 hp 228.9 kW |
| Maximum Power (gross) | 342 hp 255.0 kW |
| 377 hp (boost) 281.1 kW | |
| Rated RPM | 2000 |
| Torque | 1129 lb-ft 1530.9 Nm |
| Torque RPM | 1400 |
| Starter | electric |
| Starter volts | 12 |
| CaseIH Magnum 310 Engine | |
 |
