Iseki RTS25 Transmission


Iseki RTS25 tractor photo
2016 - 2023
RTS Series
Compact Utility tractor
Series map:
RTS23
RTS25
17.3kw
18.4kw
Transmission options
12-speed gear
30-speed partial power shift
Transmission
Typegear
Gears12 forward and reverse
Clutchdry disc
Four gears in three ranges with mechanical shuttle.
Speeds
RTS25  gear speeds
Transmission
Typepartial power shift
Gears30 forward and reverse
Ten power shift gears in three ranges with power shuttle.
Speeds

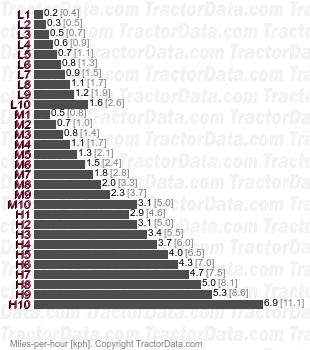

RTS25  partial power shift speeds
