Claas Arion 650 Engine


Claas Arion 650 tractor photo
2012 - 2025
Model year
Arion 600 Series
Row-Crop tractor
Series map:
Arion 630
Arion 650
Arion 660
115.6kw
130.5kw
130.5kw
Engine Detail
John Deere
turbocharged intercooled diesel
6-cylinder
liquid-cooled
Displacement414 ci
6.8 L
Bore/Stroke4.19x5.00 inches
106 x 127 mm
Rated Power (net)175 hp
130.5 kW
Maximum Power (net)185 hp
138.0 kW
Rated RPM2200
Torque556 lb-ft
753.9 Nm
Torque RPM1500
Starterelectric
Starter volts12
Oil change500 h

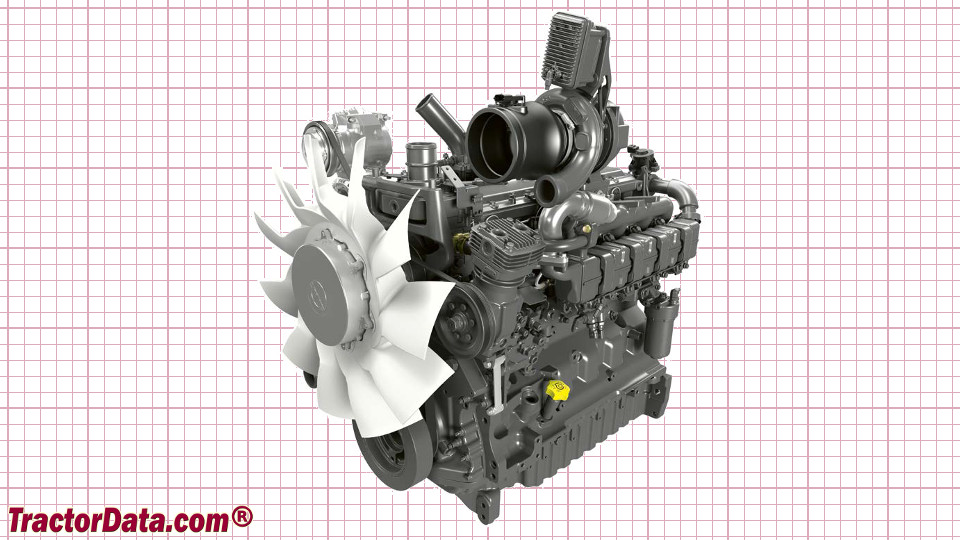

Claas Arion 650 Engine
Claas Arion 650 engine image
