Claas Arion 630 Engine


Claas Arion 630 tractor photo
2007 - 2025
Model year
Arion 600 Series
Row-Crop tractor
Series map:
Arion 610
Arion 630
Arion 650
100.7kw
115.6kw
130.5kw
Engine Detail
John Deere
turbocharged intercooled diesel
6-cylinder
liquid-cooled
Displacement414 ci
6.8 L
Bore/Stroke4.19x5.00 inches
106 x 127 mm
Rated Power (net)155 hp
115.6 kW
Maximum Power (net)165 hp
123.0 kW
Rated RPM2200
Torque519 lb-ft
703.8 Nm
Torque RPM1500
Starterelectric
Starter volts12
Oil change500 h

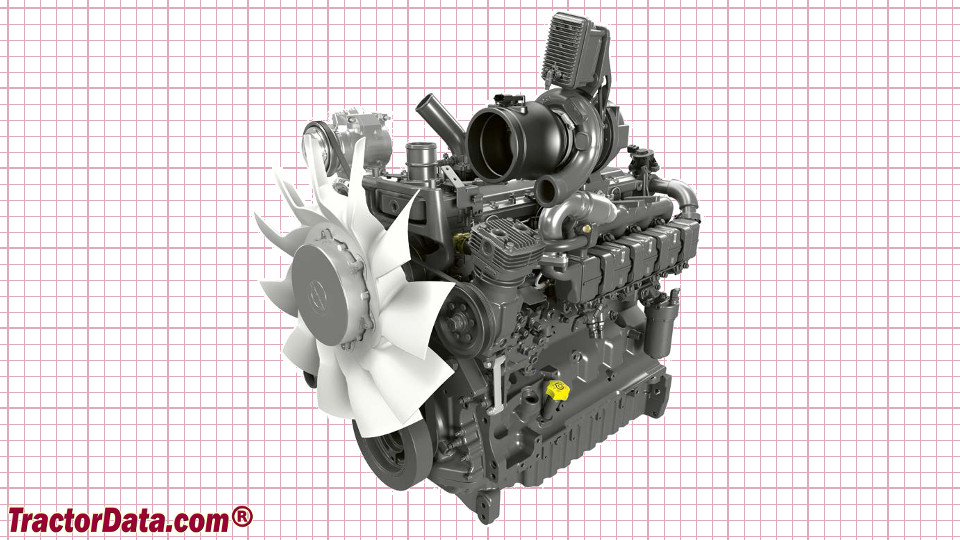

Claas Arion 630 Engine
Claas Arion 630 engine image
