Claas Arion 530 Transmission


Claas Arion 530 tractor photo
2007 - 2025
Model year
Arion 500 Series
Row-Crop tractor
Series map:
Arion 510
Arion 530
Arion 550
85.8kw
100.7kw
115.6kw
Transmission options
24-speed six-speed power shift
continuously-variable transmission
Transmission
TransmissionHexashift
Typesix-speed power shift
Gears24 forward and reverse
Six power shift gears in four ranges with power shuttle.

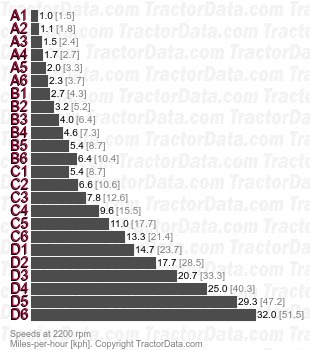

Speeds
With 20.8R38 rear tires and 50 kph option.
Arion 530 Hexashift six-speed power shift speeds

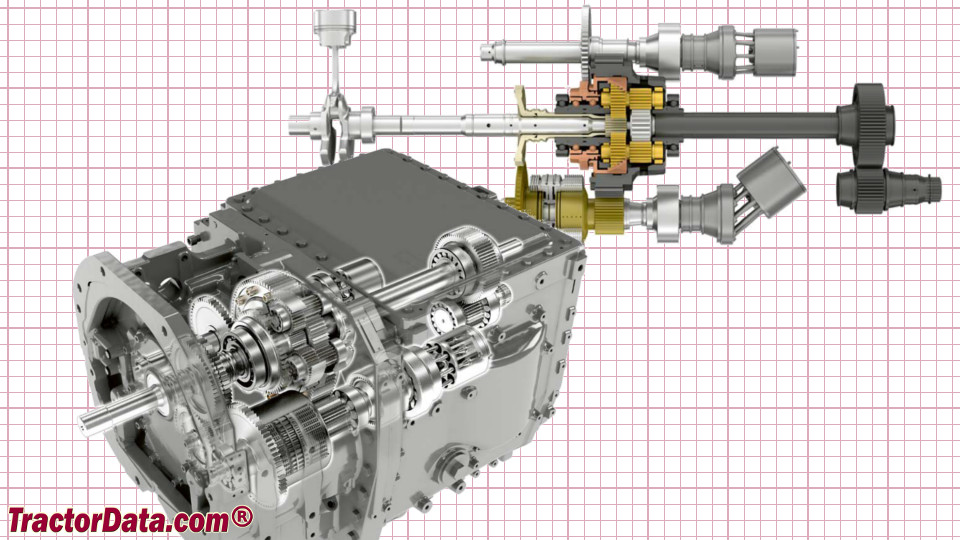

Claas Arion 530 Transmission
Claas Arion 530 transmission image
Transmission
TransmissionCMATIC EQ 200
Typecontinuously-variable transmission
Gearsinfinite forward and reverse

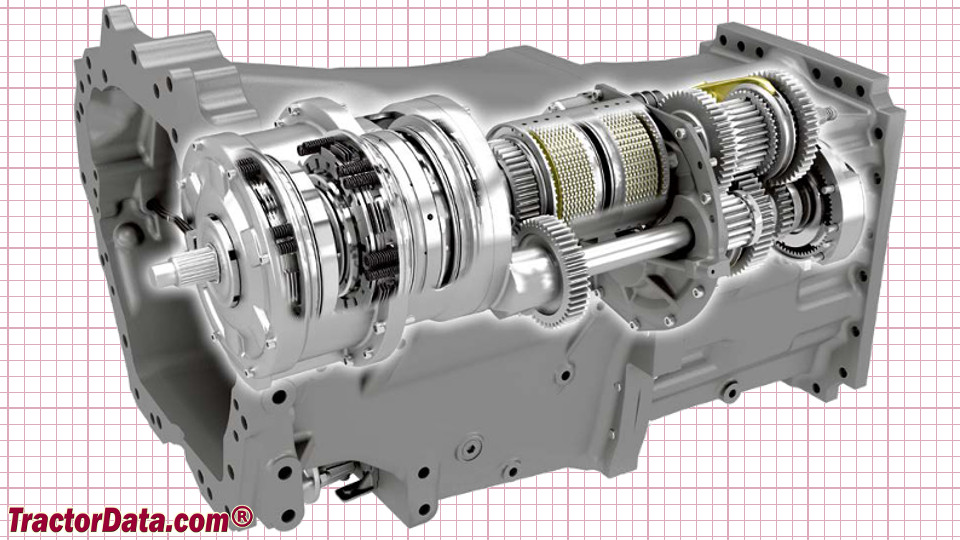

Claas Arion 530 Transmission
Claas Arion 530 transmission image
