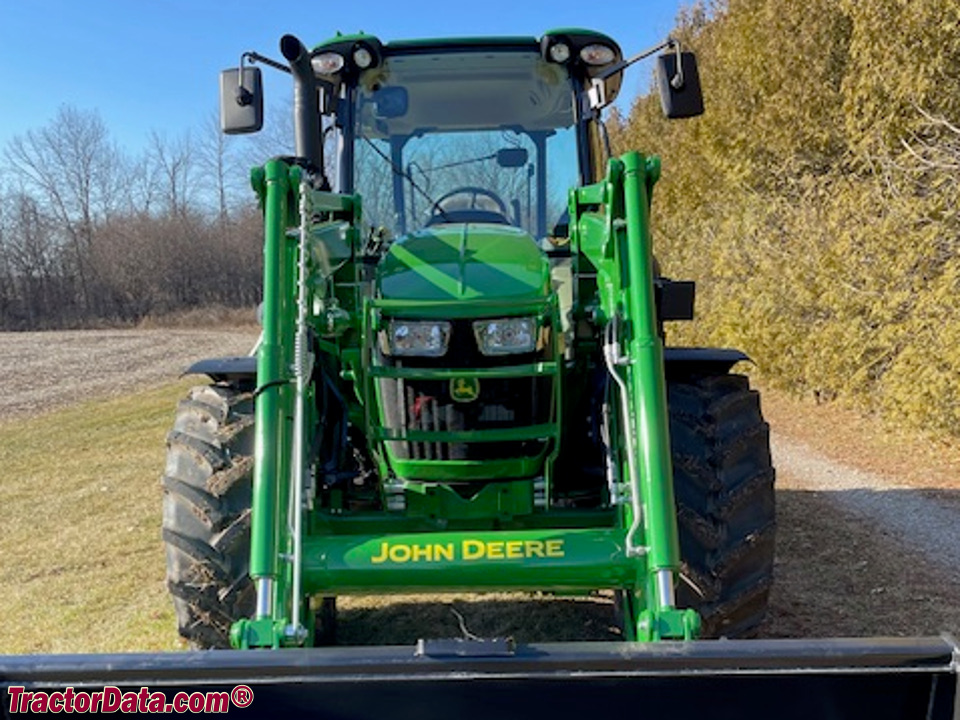

John Deere 5105M
|
|
| Production | |
| Manufacturer | John Deere |
| Utility tractor | |
| Built in Pune, India | |
| Original price was $79,345 in 2023 | |
| John Deere 5105M Engine | |
| John Deere 4.5L 4-cyl diesel | |
| ROPS Fuel tank | 37.7 gal 142.7 L |
| Cab Fuel tank | 43.7 gal 165.4 L |
| Exhaust fluid (DEF) | 3.17 gal 12.0 L |
 Engine details ... | |
| John Deere 5105M Transmissions | |
| 16-speed | |
| 16-speed 4-speed power shift | |
| 32-speed 8-speed power shift | |
 Transmission details ... |
| John Deere 5105M Power | |
| Engine | 105 hp 78.3 kW |
| PTO (claimed) | 90 hp 67.1 kW |
| Mechanical | |
| Two- or four-wheel drive | |
| Differential lock | electro-hydraulic rear |
| Power steering | |
| Two-post folding ROPS. Cab optional with air-conditioning | |
| Photos | |
 | |
 John Deere 5105M photos... | |
| Hydraulics | |
| Type | open center |
| Rear valves | 2 or 3 |
| Mid valves | 2 or 3 |
| Pump flow | 24.7 gpm (PowReverser) 93.5 lpm |
| 25.6 gpm (PowrQuad/8) 96.9 lpm | |
| SCV flow | 18.4 gpm (PowReverser) 69.6 lpm |
| 19.3 gpm (PowrQuad/8) 73.1 lpm | |
| Tractor hitch | |
| Rear Type | II/I |
| Control | position control and lower-link draft sensing |
| Rear lift | 5150 lbs (PowrReverser) 2336 kg |
| 5950 lbs (PowrReverser optional) 2698 kg | |
| 6970 lbs (PowrQuad/8) 3161 kg | |
| 7860 lbs (PowrQuad/8 optional) 3565 kg | |
| Front Hitch | II/I |
| Front lift | 4257 lbs 1930 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Clutch | electro-hydraulic |
| Rear PTO Type | 540 (1.375) |
| 540/1000 (1.375)OptOptional | |
| Engine RPM | 540@2100 |
| 540E@1645 | |
| 1000@2100 | |
| Dimensions & Tires | |
| Wheelbase | 92.5 inches 234 cm |
| Front tire | 12.4R24 |
| Rear tire | 18.4R30 |
 Full dimensions and tires ... | |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| ROPS Charging amps | 90 |
| Cab Charging amps | 120 |
| 200 OptOptional | |
| Battery volts | 12 |
| References | |
 | |
| 5M Tractors published in 2022, by John Deere |
