John Deere 70 Hi-Crop Transmission


John Deere 70 Hi-Crop tractor photo
1953 - 1956
High-Clearance tractor
Series map:
60 Hi-Crop
70 Hi-Crop
46.2hp*
-1hp
Transmission
ManufacturerJohn Deere
Typeunsynchronized gear
Gears6 forward and 1 reverse
Clutchdry disc
Three gears, plus reverse, in two ranges. Reverse is available in both direct (high) and underdrive (low) although Deere only advertised the use of reverse in low range. Use of reverse in high range may be dangerously fast.

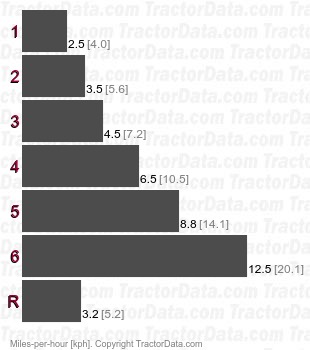

Speeds
With 12-38 rear tires.
70 Hi-Crop  unsynchronized gear speeds
