Tractors > SAME > Diamond 230

SAME Diamond 230 Transmission



SAME Diamond 230 tractor photo
2006 - 2012
Diamond Series
Row-Crop tractor
Series map:
Diamond 230
Diamond 270
178.2kw
198.4kw
Transmission
Typefour-speed power shift
Gears40 forward and reverse
Clutchhydraulic wet disc
Four power shift gears four creeper ranges and six field ranges with power shuttle.
Speeds
With 710/70R42 rear tires.

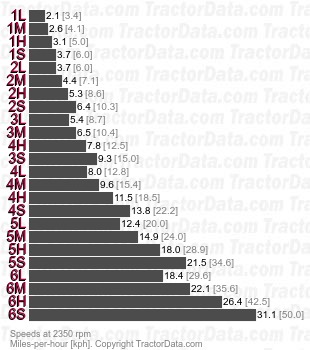

Diamond 230 four-speed power shift speeds
