Massey Ferguson 174C
|
|
| Production | |
| Manufacturer | Massey Ferguson |
| Agricultural Crawler tractor | |
| Massey Ferguson 174C Engine | |
| Perkins 3.9L 4-cyl diesel | |
| Fuel tank | 16.4 gal 62.1 L |
 Engine details ... | |
| Massey Ferguson 174C Power | |
| Engine | 61 hp 45.5 kW |
| Mechanical | |
| Drive | crawler |
| Mechanical band brakes | |
| Open operator station. | |

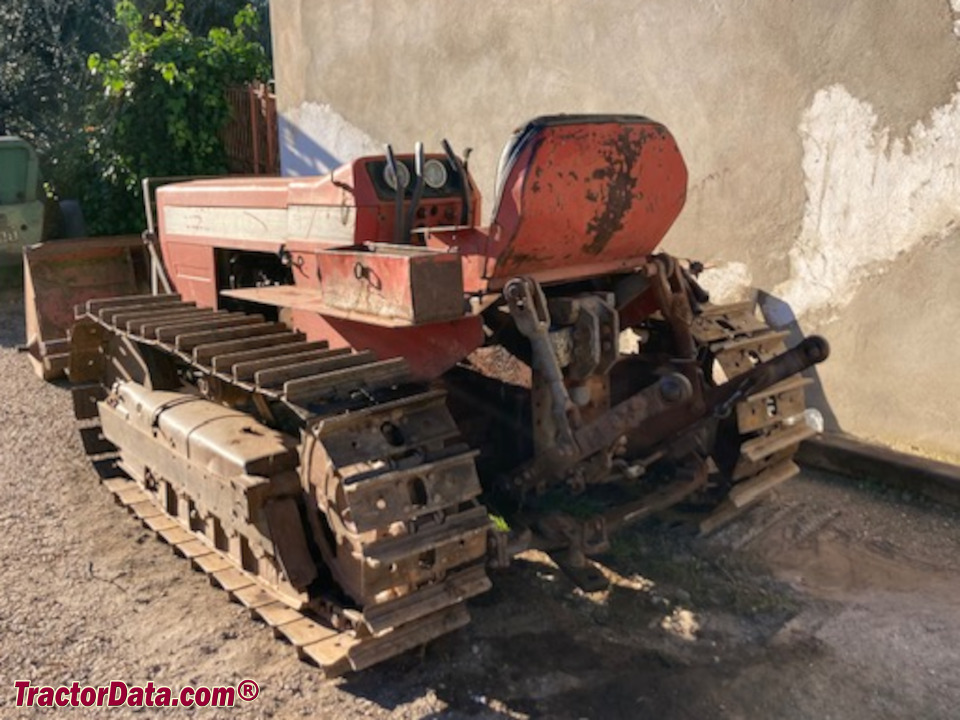

| Photos | |
| No photos of the Massey Ferguson 174C are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer. | |
| Hydraulics | |
| Type | open center |
| Pressure | 2418 psi 166.7 bar |
| Valves | 1 |
| Pump flow | 7.4 gpm 28.0 lpm |
| Tractor hitch | |
| Rear Type | II |
| Control | position and draft control |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 540 (1.375) |
| Engine RPM | 540@1944 |
| Dimensions & Tracks | |
| Wheelbase | 60 inches 152 cm |
| Weight | 7363 lbs 3339 kg |
| 14-inch tracks | |
 Full dimensions and tracks ... | |
| References | |
 | |
| MF174C published by Massey Ferguson |
