John Deere 5060E

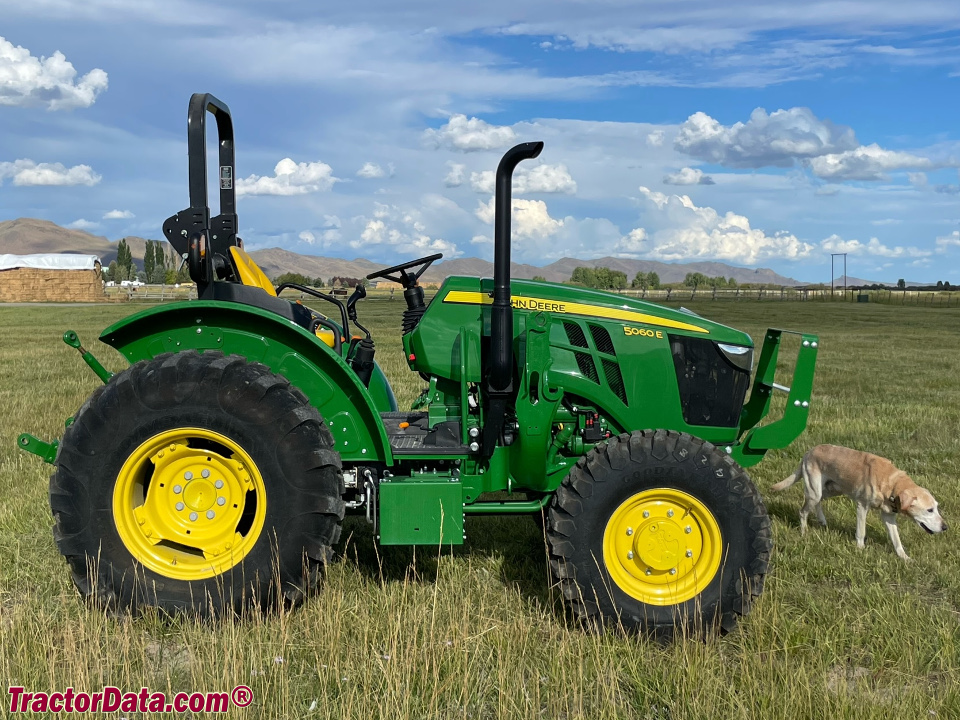

John Deere 5060E tractor photo
2023 -
5E Series
Utility tractor
Series map:
5050E
5060E
5067E
50.2hp
60.4hp
67.6hp
Production
ManufacturerJohn Deere
Utility tractor
Built in Pune, Maharashtra, India
Original price$28,714 (2023 ROPS 2WD )
$45,679 (2023 Cab 4WD )
John Deere 5060E Engine
John Deere 2.9L 3-cyl diesel
ROPS Fuel tank19 gal
71.9 L
Cab Fuel tank21 gal
79.5 L
Engine details ...
John Deere 5060E Transmissions
9-speed partially synchronized
12-speed power shuttle
Transmission details ...
John Deere 5060E Power
Engine (gross)60.4 hp
45.0 kW
ROPS PTO (claimed)45.6 hp
34.0 kW
Cab PTO (claimed)42.9 hp
32.0 kW
Mechanical
Two- or four-wheel drive
Final drivesplanetary
Differential lockmechanical rear
Power steering
Hydraulic wet disc brakes
Two-post folding ROPS. Cab optional with air-conditioning.
Hydraulics
Typeopen center
Rear valves1 or 2
Mid valves3 OptOptional
Pump flow12.8 gpm
48.4 lpm
SCV flow11.4 gpm
43.1 lpm
Total flow18.8 gpm
71.2 lpm
Steering flow6 gpm
22.7 lpm
Tractor hitch
Rear TypeII/I
Controltop link draft sensing
Rear lift (at ends)3968 lbs
1799 kg
Rear lift (at 24"/610mm)3192 lbs
1447 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540 (1.375)
Engine RPM540@2100
 540E@1588
Dimensions & Tires
Wheelbase80.7 inches
204 cm
Weight5445 to 6702 pounds
Front tire11L-15
2WD Rear tire14.9-28
Full dimensions and tires ...
5060E Serial Number Location
John Deere 5060E serial number location
Serial number plate on the right side of the tractor frame, above the front axle.
Electrical
Groundnegative
Charging systemalternator
ROPS Charging amps60
Cab Charging amps110
Battery volts12
Battery AH85
References
5060E references literature
5E Utility Tractors published in 2022, by John Deere
Operator's Manual 5050E, 5060E, 5067E and 5057E Tractors (OMTA21460) published in 2022
