John Deere 5060E Transmission
|
|
| Transmission options | |
| 9-speed partially synchronized | |
| 12-speed power shuttle |
| Transmission | |
| Transmission | SyncShuttle |
| Type | partially synchronized |
| Gears | 9 forward and 3 reverse |
| Clutch | dry disc |
| Three synchronized gears in three ranges. Tractor must be stopped, and clutch used, to shift range. | |

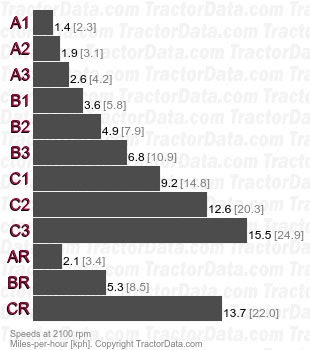

| Speeds | |
| With 16.9-28 rear tires. | |
|
| Transmission | |
| Transmission | PowrReverser |
| Type | power shuttle |
| Gears | 12 forward and reverse |
| Clutch | wet disc |
| Four synchronized gears (1-4) in three ranges (A-C) with power shuttle. Tractor must be stopped, and clutch used, to shift range. | |

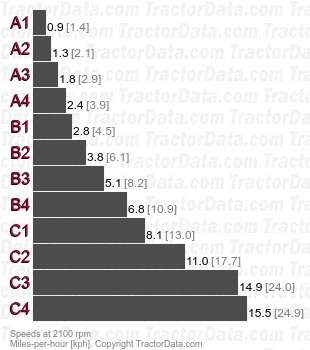

| Speeds | |
| With 16.9-28 rear tires. Reverse speeds are 8% faster than forward. | |
|
