John Deere 5050E Transmission


John Deere 5050E tractor photo
2023 -
5E Series
Utility tractor
Series map:
5050E
5060E
50.2hp
60.4hp
Transmission
TransmissionSyncShuttle
Typepartially synchronized
Gears9 forward and 3 reverse
Clutchdry disc
Three synchronized gears in three ranges. Tractor must be stopped, and clutch used, to shift range.

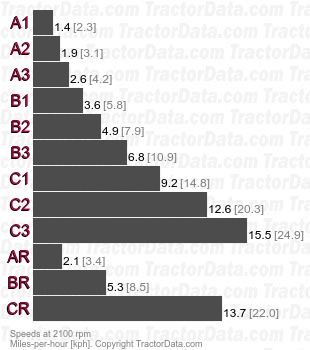

Speeds
With 16.9-28 rear tires.
5050E SyncShuttle partially synchronized speeds
