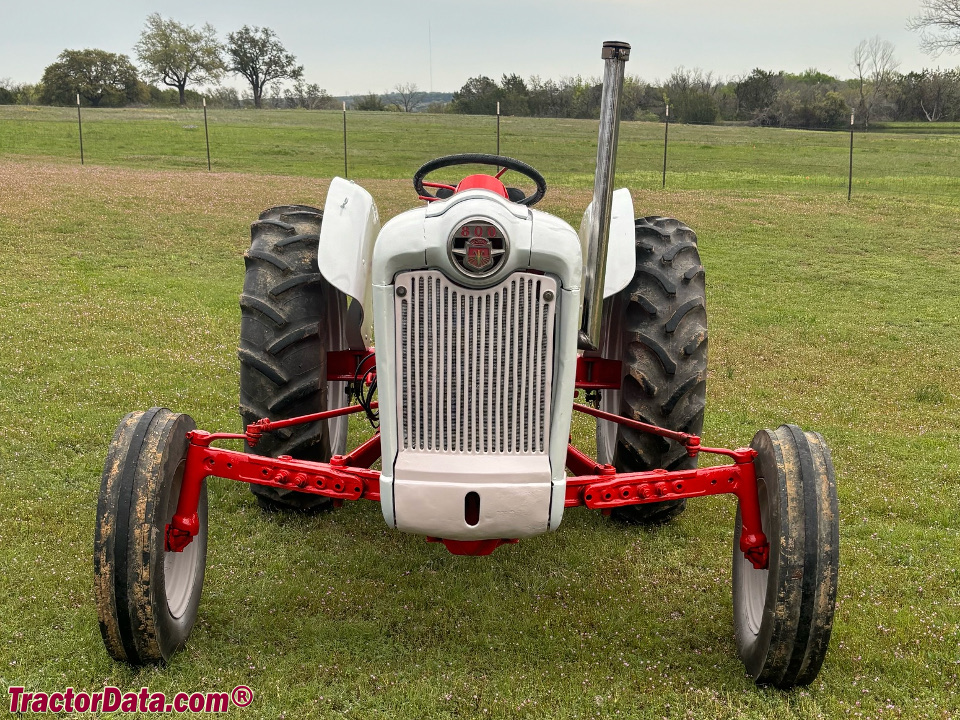

Ford 840
| | 1957 |
| 800 Series | | Utility tractor |
|
Series map:
650
840
33.3hp*
44.4hp*
*Estimated engine power for comparison only.
| Production |
| Manufacturer | Ford
|
| Utility tractor |
| Built in Highland Park, Michigan, USA |
| Variants |
| 820 | no 3-point or hydraulics
|
| 840 | four-speed
|
| 850 | transmission PTO
|
| 860 | live PTO
|
| Ford 840 Power |
| Belt (claimed) | 40 hp
29.8 kW
|
| Plows | 3 *14-inch
|
| Mechanical |
| Two-wheel drive |
| Steering | manual
|
| | power assist optional
|
| Differential mechanical expanding shoe brakes |
| Open operator station. |
| Capacity |
| Fuel | 14 gal
53.0 L
|
| Hydraulic system | 2 gal
7.6 L
|
| Rear axle | 11 qts
10.4 L
|
| Hydraulics |
| Type | open center
|
| Capacity | 2 gal
7.6 L
|
| Pressure | 2000 psi
137.9 bar
|
| Pump flow | 4.8 gpm
18.2 lpm
|
| Tractor hitch |
| Rear Type | I
|
| Control | position and draft control
|
| Rear lift | 1250 lbs
567 kg
|
| Power Take-off (PTO) |
| Rear PTO | transmission
|
| Rear PTO Type | 540 (1.125)
|
| 840 Serial Number Location |
 |
| On the left-hand side of the transmission housing behind the starter. |
| Electrical |
| Ground | positive
|
| Charging system | generator
|
| Charging amps | 20
|
| Battery volts | 6
|
| References |
 |
| 840 Powermaster published in 1957, by Ford |
