| | 1990 - 1997 |
| Maxxum Series | | High-Clearance tractor |
|
Series map:
5120HC
5140HC
94.0hp
117.0hp
| Transmission options |
| 16-speed synchronized |
| 16-speed four-speed power shift |
| 24-speed creeper |
| 24-speed super creeper |

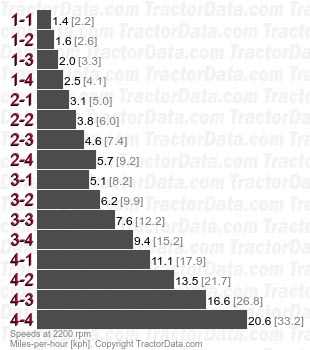

| Transmission |
| Type | synchronized
|
| Gears | 16 forward and 12 reverse
|
| Four synchronized gears gears in four synchronized ranges with power shuttle. |
| Speeds |
| With 13.6-46 rear tires. Reverse speeds are approximately 20% faster than forward. |
|
| Transmission |
| Type | four-speed power shift
|
| Gears | 16 forward and 12 reverse
|
| Four power shift gears gears in four synchronized ranges with power shuttle. |
| Speeds |
| With 13.6-46 rear tires. Reverse speeds are approximately 20% faster than forward. |
|
| Transmission |
| Type | creeper
|
| Gears | 24 forward and 20 reverse
|
| Additional creeper range (8 speeds forward and reverse) available with the synchronized or power shift transmission. |
| Speeds |
| With 13.6-46 rear tires. |
|
| Transmission |

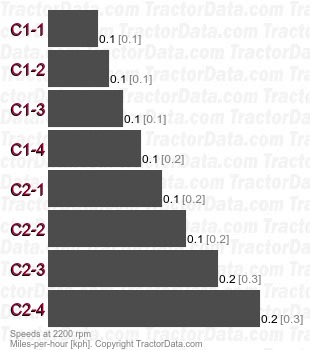

| Type | super creeper
|
| Gears | 24 forward and 20 reverse
|
| Additional ultra-slow creeper range (8 speeds forward and reverse) available with the synchronized or power shift transmission. With the super creeper option the direct-drive gear speeds are also approximately 15% slower than the base transmission. |
| Speeds |
| With 13.6-46 rear tires. |
|
