Branson 4820R
|
|
| Production | |
| Manufacturer | Branson (a part of TYM) |
| Compact Utility tractor | |
| Variants | |
| 4820R | ROPS shuttle |
| 4820H | ROPS hydrostatic |
| 4820C | Cab shuttle |
| 4820CH | Cab hydrostatic |
| Branson 4820R Engine | |
| Kukje 2.3L 4-cyl diesel | |
| Fuel tank | 11.8 gal 44.7 L |
 Engine details ... | |
| Branson 4820R Transmission | |
| 16-speed synchronized shuttle | |
 Transmission details ... |
| Branson 4820R Power | |
| Engine | 48 hp 35.8 kW |
| PTO (claimed) | 36 hp 26.8 kW |
| Mechanical | |
| Four-wheel drive | |
| Power steering | |
| Two-post folding ROPS. |

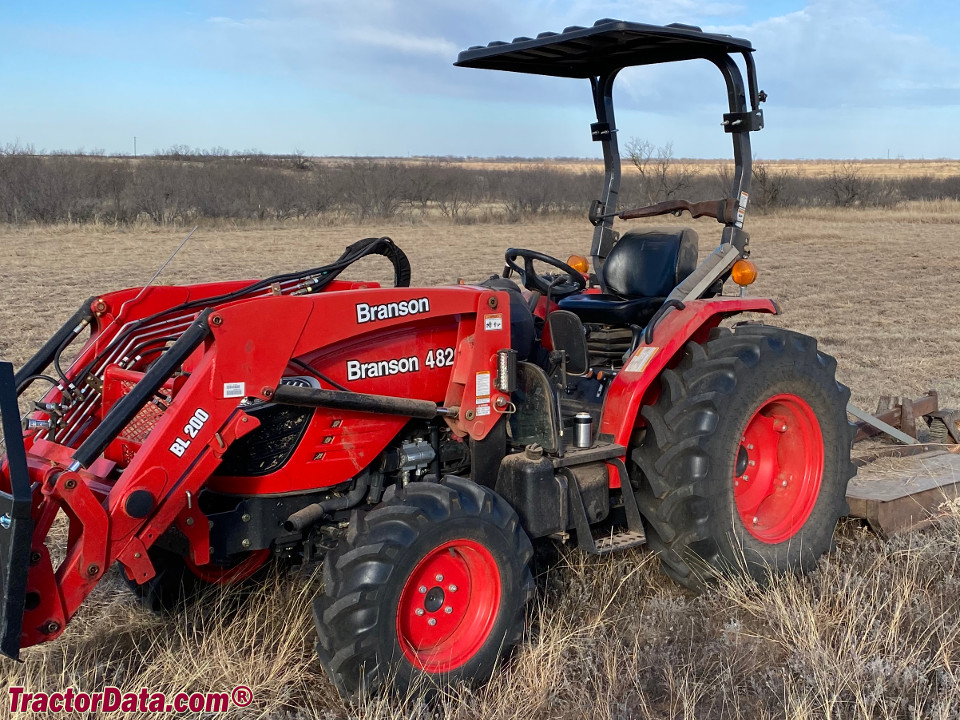

| Photos | |
 | |
 Branson 4820R photos... | |
| Hydraulics | |
| Pump flow | 16.1 gpm 60.9 lpm |
| Steering flow | 5 gpm 18.9 lpm |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 540 (1.375) |
| Engine RPM | 584@2600 |
| Dimensions & Tires | |
| Wheelbase | 71.1 inches 180 cm |
| Weight | 3831 lbs 1737 kg |
| Front tire | 9.5-16 |
| Rear tire | 12.4-28 |
 Full dimensions and tires ... | |
| Branson 4820R attachments | |
| front-end loader | |
| backhoe | |
 Attachment details ... |
| References | |
 | |
| 20 Series published in 2021, by Branson |
