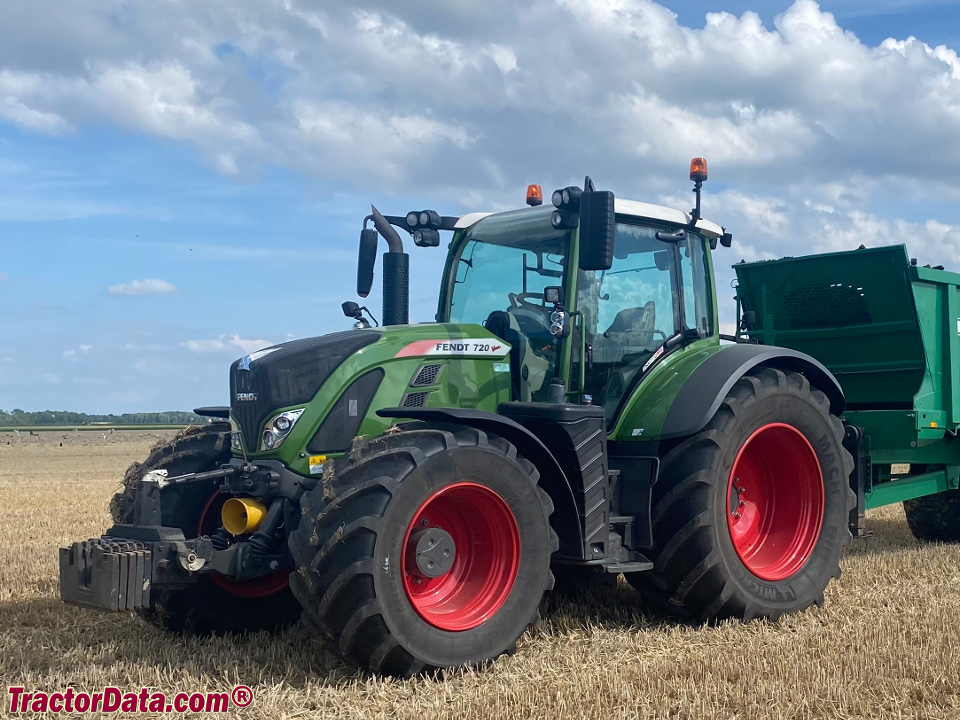

Fendt 720 Vario
|
|
| Production | |
| Manufacturer | Fendt (a part of AGCO) |
| Row-Crop tractor | |
| Fendt 720 Vario Engine | |
| AGCO Power 7.5L 6-cyl diesel | |
| Fuel tank | 118.8 gal 449.7 L |
| Exhaust fluid (DEF) | 12.7 gal 48.1 L |
 Engine details ... | |
| Fendt 720 Vario Transmission | |
| continuously-variable transmission | |
 Transmission details ... |
| Fendt 720 Vario Power | |
| Engine (gross) | 199.8 hp 149.0 kW |
| Mechanical | |
| Four-wheel drive | |
| Cab standard with air-conditioning. |
| Photos | |
 | |
 Fendt 720 Vario photos... | |
| Hydraulics | |
| Type | load-sensing variable displacement |
| Pressure | 2901 psi 200.0 bar |
| Rear valves | 4 or 5 |
| Mid valves | 2 or 3 |
| Front valves | 1 or 2 |
| Pump flow | 43.6 gpm 165.0 lpm |
| 58.1 gpmOptOptional 219.9 lpm | |
| SCV flow | 31.7 gpm (UDK) 120.0 lpm |
| 44.9 gpm (DUDK) 169.9 lpm | |
| Tractor hitch | |
| Rear lift | 24840 lbs (max force) 11267 kg |
| Front Hitch | II |
| Front lift | 7328 lbs 3323 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 540/540E/1000/1000E |
| Engine RPM | 540@1618 |
| 540E@1283 | |
| 1000@1649 | |
| 1000E@1308 | |
| Front PTO | independent OptOptional |
| Front PTO Type | 1000 |
| Engine RPM | 1000@1647 |
| Dimensions & Tires | |
| Wheelbase | 114.2 inches 290 cm |
| Weight | 20393 lbs 9250 kg |
| Front tire | 540/65R30 |
| Rear tire | 650/65R42 |
 Full dimensions and tires ... | |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 240 |
| Charging volts | 14 |
| Battery volts | 12 |
| Battery AH | 180 |
| References | |
 | |
| 700 Vario Gen7 published in 2022, by Fendt |
