John Deere 6135R Transmission


John Deere 6135R tractor photo
2016 - 2022
6R Series
Utility tractor
Transmission options
24-speed partial power shift
continuously-variable transmission
Transmission
TransmissionPowrQuad Plus
Typepartial power shift
Gears24 forward and reverse
Four push-button power shift gears (1-4) in six synchronized ranges (A-F) with left-hand power shuttle. Push-button clutch on the shift lever.
Speeds
With580/70R38 rear tires and 40 KPH option. Reverse speeds are 5% faster than forward.

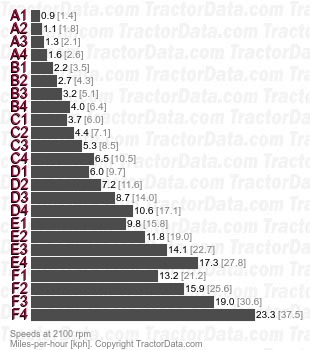

6135R PowrQuad Plus partial power shift speeds
Transmission
TransmissionAutoQuad Plus
Typepartial power shift
Gears24 forward and reverse
Four push-button power shift gears (1-4) in six synchronized ranges (A-F) with left-hand power shuttle. Automatic gear shifting.
Speeds
With580/70R38 rear tires and 50 KPH option. Reverse speeds are 5% faster than forward.

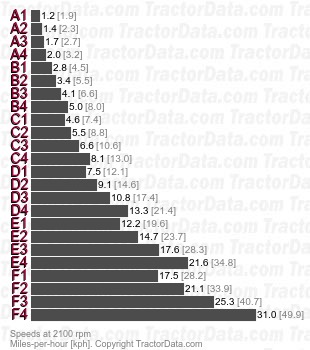

6135R AutoQuad Plus partial power shift speeds
Transmission
TransmissionAutoPowr
Typecontinuously-variable transmission
Gearsinfinite forward and reverse
Hydro-mechanical continuous transmission.
