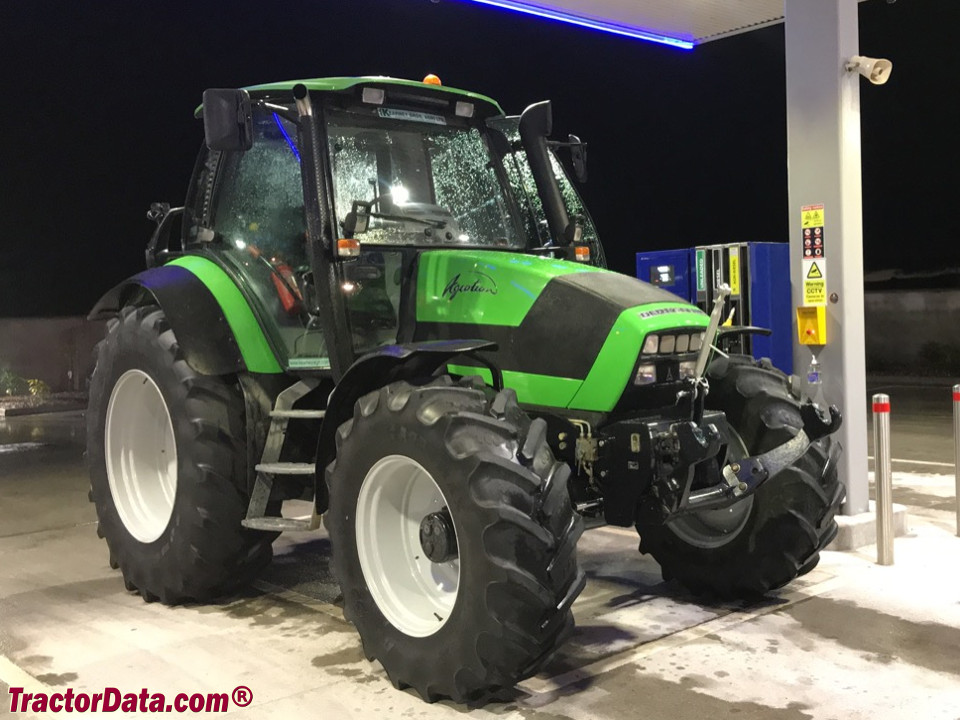

Deutz-Fahr Agrotron 150
| | 2005 - 2007 |
| Agrotron Series | | Utility tractor |
|
| Production |
| Manufacturer | Deutz-Fahr
|
| Utility tractor |
| Deutz-Fahr Agrotron 150 Power |
| Engine (gross) | 158.2 hp
118.0 kW
|
| Mechanical |
| Four-wheel drive |
| Power steering |
| Wet disc brakes |
| Cab standard with air-conditioning. |
| Hydraulics |
| Type | open center
|
| | closed center OptOptional
|
| Pressure | 2901 psi
200.0 bar
|
| Valves | 2 to 4
|
| Pump flow | 21.9 gpm (open)
82.9 lpm
|
| | 31.7 gpm (closed)
120.0 lpm
|
| Tractor hitch |
| Rear Type | III/II
|
| Rear lift | 20283 lbs
9200 kg
|
| Front Hitch | II OptOptional
|
| Front lift | 8818 lbs
3999 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Clutch | electro-hydraulic wet disc
|
| Rear PTO Type | 540/1000 (1.375)
|
| Engine RPM | 540@2200
|
| | 540E@1600
|
| | 1000@2200
|
| | 1000E@1600
|
| Front PTO | independent OptOptional
|
| Clutch | 1000:2130
|
| Front PTO Type | 1000
|
| Electrical |
| Charging system | alternator
|
| Charging amps | 95
|
| Battery volts | 12
|
| Battery AH | 143
|
| | 170 OptOptional
|
