| | 1999 - 2001 |
| 3200 Series | | Orchard/Vineyard tractor |
|
Series map:
3235
3245
3255
59.7kw
67.9kw
70.8kw
| Transmission options |
| 12-speed partially synchronized |
| 24-speed creeper |
| Transmission |
| Type | partially synchronized
|
| Gears | 12 forward and reverse
|
| Clutch | 304.8mm cerametallic disc
|
| Four synchronized gears (1-4) in three ranges. Gears may be shifted on the move with the clutch. Tractor must be stopped, and clutch used, to shift range or shuttle. |

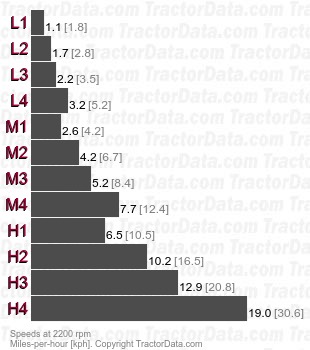

| Speeds |
| With 14.9R28 rear tires. |
|
| Shift Pattern |
 |
| Transmission |
| Type | creeper
|
| Gears | 24 forward and 12 reverse
|
