John Deere GH

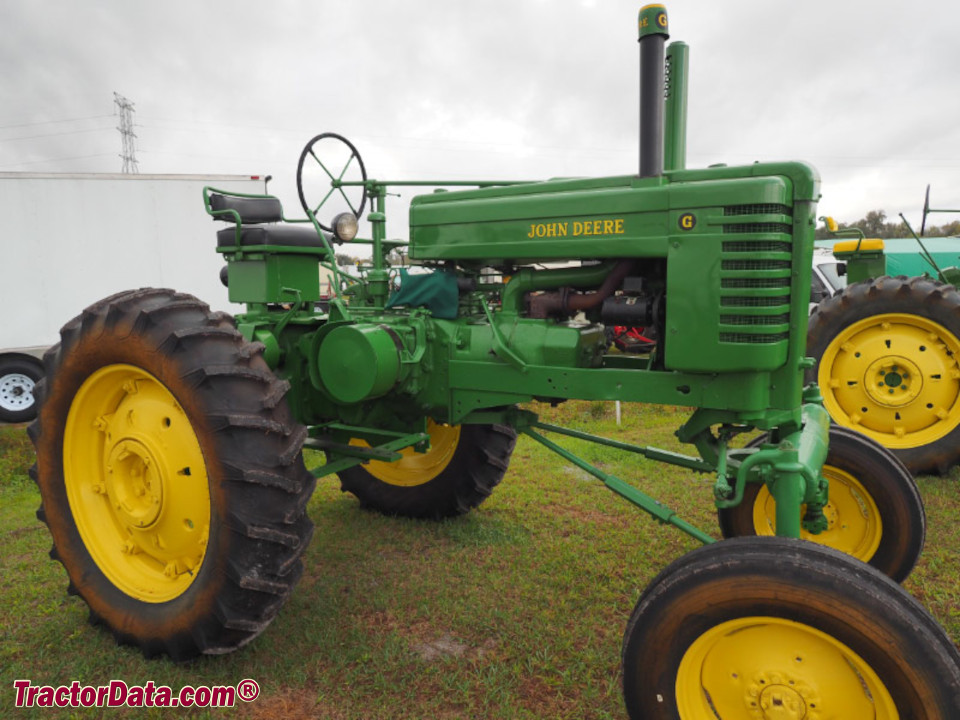

John Deere GH tractor photo
1950 - 1953
Two-Cylinder Letter Series
High-Clearance tractor
Series map:
GH
44.2hp*
*Estimated engine power for comparison only.
Production
ManufacturerJohn Deere
High-Clearance tractor
Built in Waterloo, Iowa, USA
Total built237
Variants
Grow-crop
GNsingle-front
GWwide-front
GHhigh-crop
John Deere GH Engine
John Deere 6.8L 2-cyl all-fuel
Fuel tank17 gal
64.3 L
Aux. fuel1.5 gal
5.7 L
Engine details ...
John Deere GH Power
Drawbar (claimed)36.01 hp
26.9 kW
Belt (claimed)39.80 hp
29.7 kW
Mechanical
Two-wheel drive
Manual steering
Mechanical drum brakes
Open operator station.
Hydraulics
Typeopen center
Pump flow1.25 gpm
4.7 lpm
Power Take-off (PTO)
Rear PTOtransmission
Rear PTO Type540
Dimensions & Tires
Weight6940 lbs
3147 kg
Front tire7.50-20
Rear tire12-38
Full dimensions and tires ...

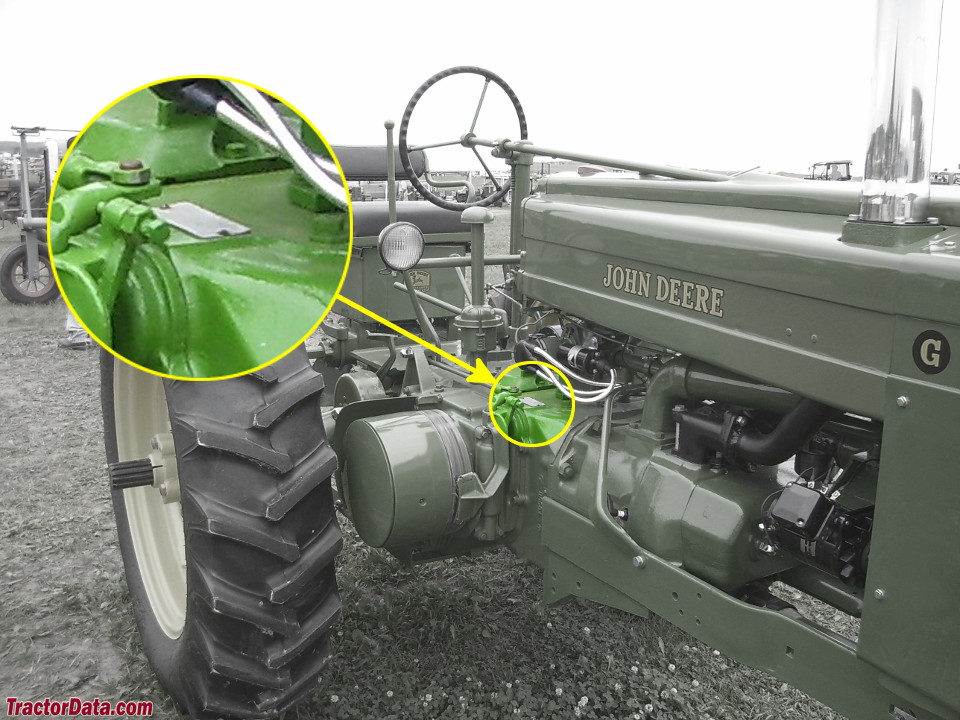

GH Serial Number Location
John Deere GH serial number location
Serial number plate on the casting above the belt pully.
Electrical
Groundpositive
Charging systemgeneration
Batteries2
Battery volts6
