CaseIH Farmall 40A Series II
|
|
| Production | |
| Manufacturer | CaseIH |
| Compact Utility tractor | |
| Original price was $21,817 in 2021 with gear | |
| CaseIH Farmall 40A Engine | |
| LS Mtron 1.9L 3-cyl diesel | |
| Fuel tank | 7.4 gal 28.0 L |
 Engine details ... | |
| CaseIH Farmall 40A Transmissions | |
| 12-speed mechanical shuttle | |
| hydrostatic | |
 Transmission details ... |
| CaseIH Farmall 40A Power | |
| Engine | 40 hp 29.8 kW |
| Gear PTO (claimed) | 34 hp 25.4 kW |
| Hydro PTO (claimed) | 32 hp 23.9 kW |
| Mechanical | |
| Drive | 4WD |
| Differential lock | mechanical rear |
| Wet disc brakes | |
| Two-post folding ROPS. | |

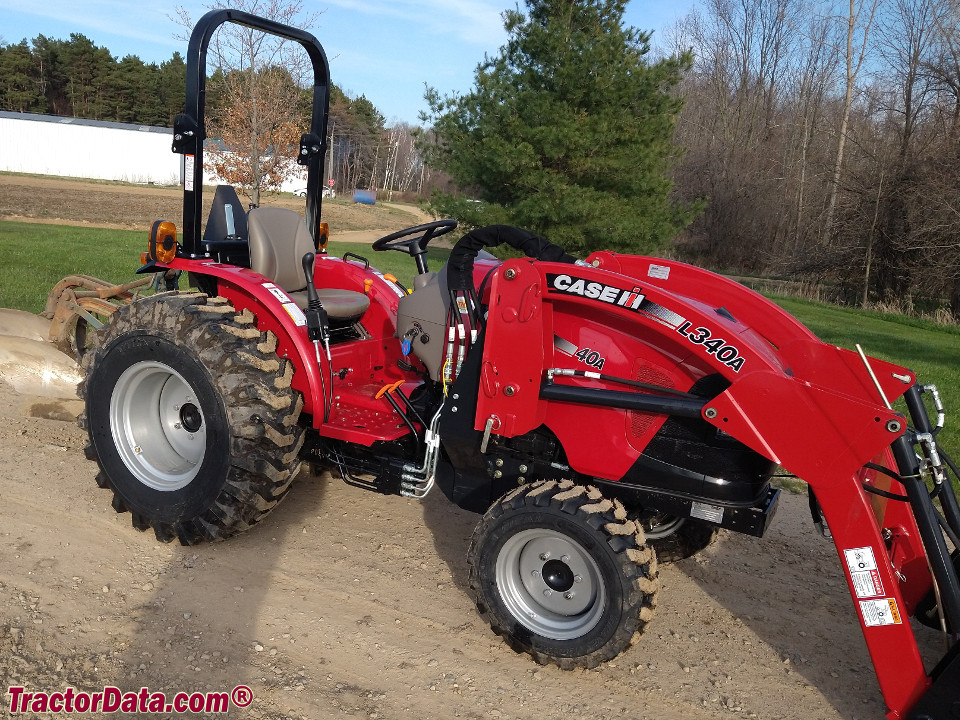

| Photos | |
 | |
 CaseIH Farmall 40A photos... | |
| Hydraulics | |
| Type | open center |
| Rear valves | 1 OptOptional |
| Pump flow | 8.2 gpm 31.0 lpm |
| Gear Steering flow | 4.2 gpm 15.9 lpm |
| Hydro Steering flow | 5.3 gpm 20.1 lpm |
| Tractor hitch | |
| Rear Type | I |
| Control | position control |
| Rear lift (at ends) | 1808 lbs 820 kg |
| Rear lift (at 24"/610mm) | 1433 lbs 650 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Clutch | electro-hydraulic |
| Rear PTO Type | 540 |
| Mid PTO | independent OptOptional |
| Mid PTO Type | 2000 |
| Dimensions & Tires | |
| Wheelbase | 67.5 inches 171 cm |
| Weight | 3067 lbs 1391 kg |
| Front tire | 7x14 |
| Rear tire | 11.2x24 |
 Full dimensions and tires ... | |
| CaseIH Farmall 40A attachments | |
| front-end loader | |
| backhoe | |
 Attachment details ... |

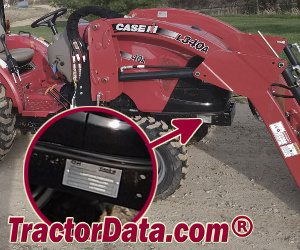

| Farmall 40A Serial Number Location | |
 | |
| Electrical | |
| Ground | negative |
| Charging amps | 70 |
| Battery volts | 12 |
| References | |
 | |
| Farmall Compact A published in 2019, by CaseIH |
